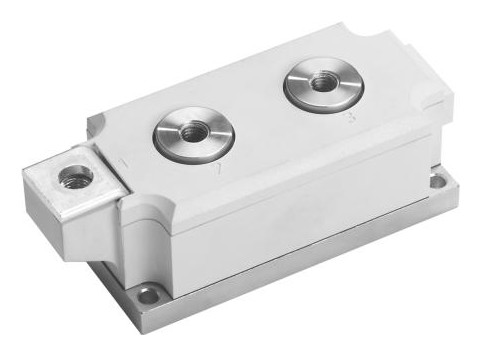

SKKT500-12E Semikron - Thyristor / Diode Module

SKKT500-12E Description

Rated at 1200 V and 540 A, the Semikron SKKT500-12E is a thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the SKKT500-12E, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Semikron SKKT500-12E is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKKT500-12E is a 1,200 V, 500 A thyristor module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,200 V
Non-repetitive peak reverse voltage (VRSM)	1,300 V
Average on-state / forward current	500 A (sin. 180°, Tc = 89 °C)
RMS current, max. (continuous)	920 A
Package	SEMIPACK 5
Datasheet	Available on this page (PDF)
