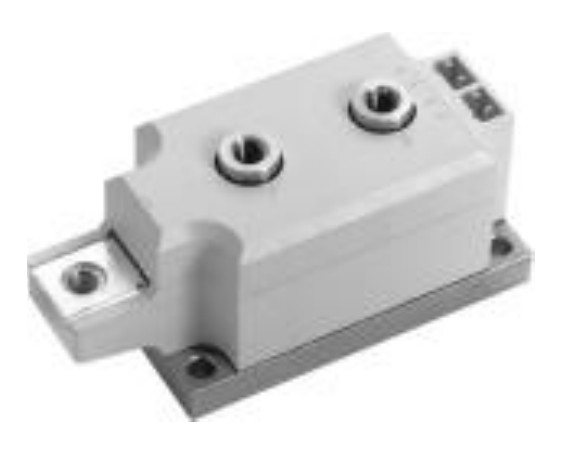

SKKT330-12E Semikron - Thyristor / Diode Module

SKKT330-12E Description

The Semikron SKKT330-12E is a thyristor module, rated for 1200 V and 305 A. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

Looking for a replacement SKKT330-12E? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Semikron SKKT330-12E is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKKT330-12E is a 1,200 V, 330 A thyristor module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,200 V
Non-repetitive peak reverse voltage (VRSM)	1,300 V
Average on-state / forward current	330 A (sin. 180°, Tc = 80 °C)
On-state / forward voltage, max. (Tvj = 25 °C)	1.4 V
Package	SEMIPACK 3
Datasheet	Available on this page (PDF)
