SKKT430-22EH4 Semikron - Thyristor / Diode Module

Also written as: SKKT430/22EH4

Category: Thyristor & SCR Modules

Specifications: 2200V, 430A

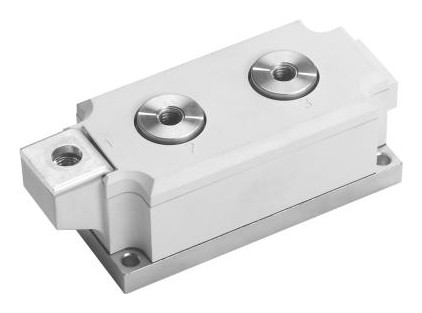

SKKT430-22EH4, SEMIKRON, Power Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKKT430-22EH4 Description

Rated at 2200 V and 700 A, the Semikron SKKT430-22EH4 is a thyristor module. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the SKKT430-22EH4, and please confirm ratings against the datasheet before ordering.

Target Applications

Semikron SKKT430-22EH4 is used for Input converters for AC inverter drives and temperature control (e.g. for ovens, chemical processes).

Key Specifications

SKKT430-22EH4 is a 2,200 V, 430 A thyristor module (dual). Source: manufacturer datasheet (Semikron).

ParameterValue
Product typeThyristor module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)2,200 V
Non-repetitive peak reverse voltage (VRSM)2,200 V
Average on-state / forward current430 A (sin. 180°, Tc = 86 °C)
RMS current, max. (continuous)700 A
Surge current (10 ms, Tvj = 125 °C)13,000 A
Isolation test voltage (Visol, a.c. 50 Hz)4800 / 4000 V~
PackageSEMIPACK 5
Weightapprox. 1420 g
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKT430-22EH4 (reply within 24 hours)
