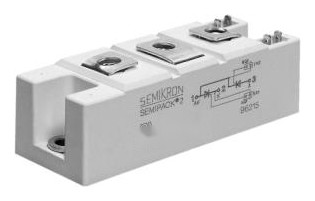

SKKT162-22EH4 Semikron - Thyristor / Diode Module
Also written as: SKKT162/22EH4
SKKT162-22EH4 Description
The Semikron SKKT162-22EH4 is a thyristor module, rated for 2200 V and 250 A. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.
Looking for a replacement SKKT162-22EH4? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.
Target Applications
Semikron SKKT162-22EH4 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications
SKKT162-22EH4: key data from the Semikron datasheet.
| Parameter | Value |
|---|---|
| Product type | Thyristor module (dual) |
| Average on-state / forward current | 162 A (sin. 180°, Tc = 77 °C) |
| RMS current, max. (continuous) | 250 A |
| Surge current (10 ms, Tvj = 125 °C) | 4,800 A |
| Thermal resistance Rth(j-c), per thyristor / per module | 0.16 / 0.08 K/W |
| Package | SEMIPACK 2 |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for SKKT162-22EH4 (reply within 24 hours)
Related Part Numbers
| SKKT162-20EH4 2000V, 250A | SKKT132-22EH4 2200V, 220A | SKKT280-22EH4 2200V, 280A | SKKT72-22EH4 2200V, 70A |
| SKKT430-22EH4 2200V, 430A | SKKT460-22EH4 2200V, 460A | SKKT57-22EH4 2200V, 50A | SKKT132-20EH4 2000V, 220A |
| SKKT162-18E 1800V, 250A | SKKT162-16E 1600V, 250A | SKKT162-14E 1400V, 250A | SKKT162-12E 1200V, 250A |
| SKKT162-12 1200V, 156A | SKKT162-08E 800V, 160A | SKKT161-16E-2 1600V, 160A | SKKT161-16E 1600V, 160A |
