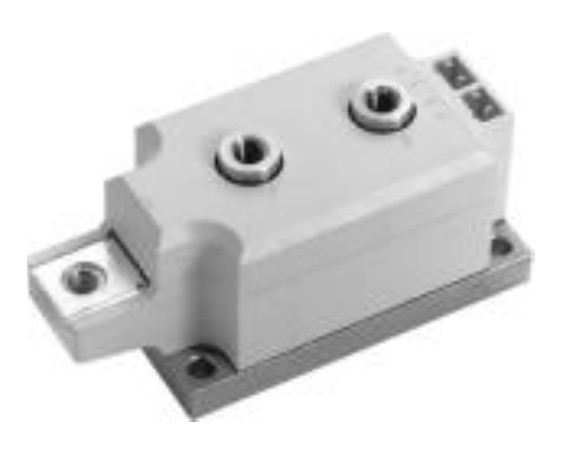

SKKT330-14E Semikron - Thyristor / Diode Module

SKKT330-14E Description

Semikron makes the SKKT330-14E, a 1400 V, 305 A thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the SKKT330-14E and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Semikron SKKT330-14E is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKKT330-14E is a 1,400 V, 330 A thyristor module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,400 V
Non-repetitive peak reverse voltage (VRSM)	1,500 V
Average on-state / forward current	330 A (sin. 180°, Tc = 80 °C)
On-state / forward voltage, max. (Tvj = 25 °C)	1.4 V
Package	SEMIPACK 3
Datasheet	Available on this page (PDF)
