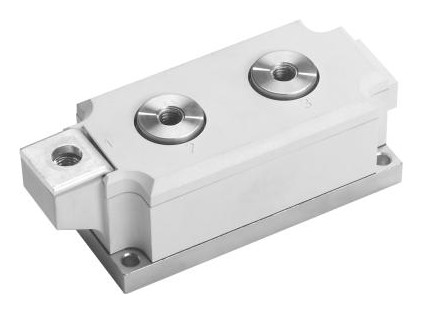

SKKH500-14E Semikron - Thyristor / Diode Module

SKKH500-14E Description

SKKH500-14E is a 1400 V, 920 A thyristor module made by Semikron. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

Looking for a replacement SKKH500-14E? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Semikron SKKH500-14E is used for Input converters for AC drives, temperature control (e.g. for ovens, chemical processes) and professional light dimming (studios, theaters).

Key Specifications

SKKH500-14E is a 1,400 V, 500 A thyristor / diode module. Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor / diode module
Repetitive peak reverse voltage (VRRM / VDRM)	1,400 V
Non-repetitive peak reverse voltage (VRSM)	1,500 V
Average on-state / forward current	500 A (sin. 180°, Tc = 89 °C)
RMS current, max. (continuous)	920 A
Package	SEMIPACK 5
Weight	approx. 1420 g
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKH500-14E (reply within 24 hours)
