SKKE600-12 Semikron - Diode Module

SKKE600-12 Description

Semikron makes the SKKE600-12, a diode module. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the SKKE600-12, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Semikron SKKE600-12 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKKE600-12 is a 1,200 V, 600 A diode module. Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Diode module
Repetitive peak reverse voltage (VRRM / VDRM)	1,200 V
Non-repetitive peak reverse voltage (VRSM)	1,200 V
Average on-state / forward current	600 A (sin. 180°, Tc = 100 °C)
RMS current, max. (continuous)	930 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.5 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Package	SEMIPACK 4
Weight	approx. 940 g

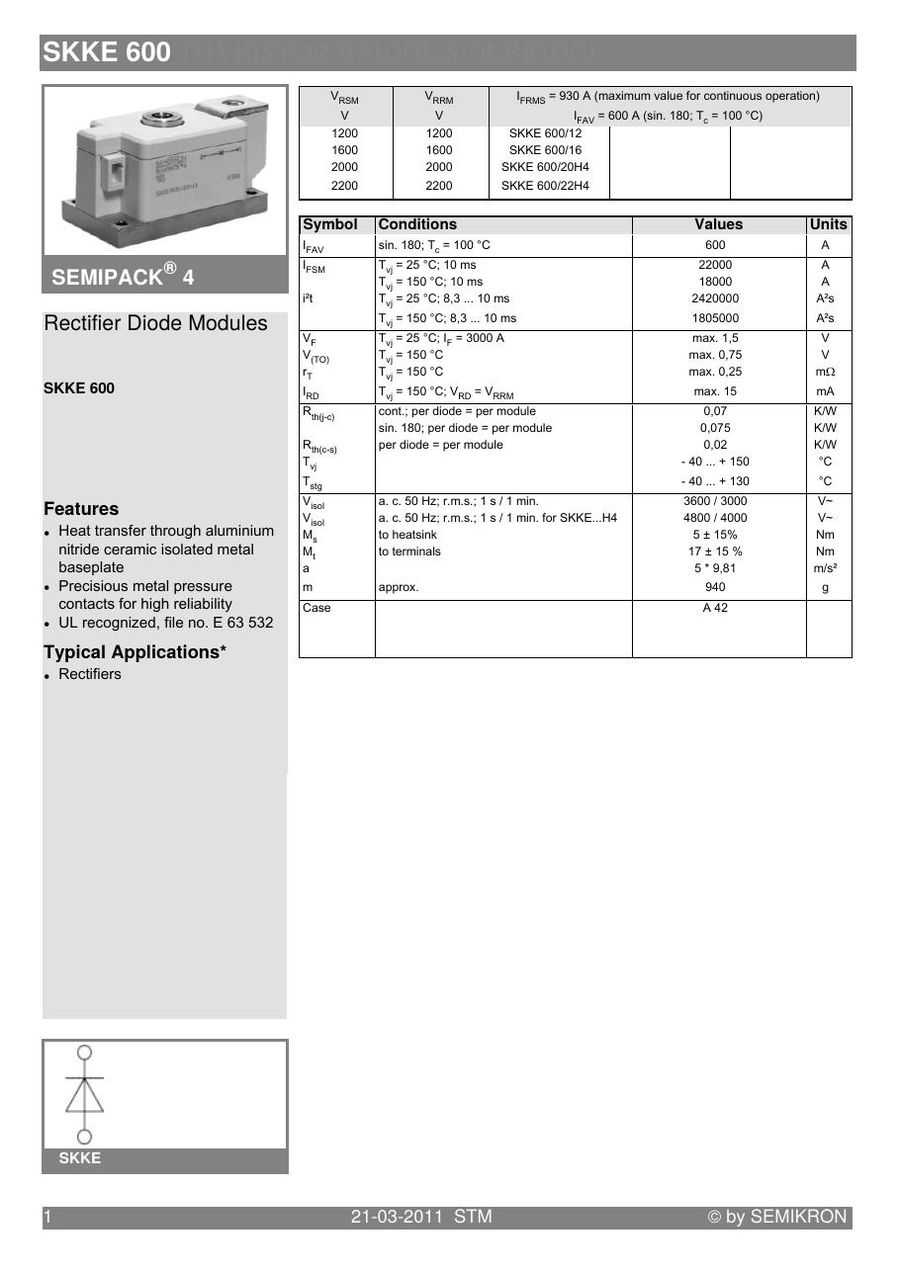

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKE600-12 (reply within 24 hours)
