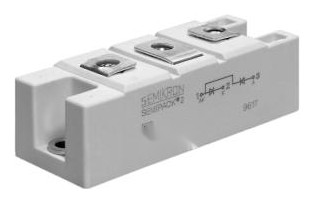

SKKE162-14 Semikron - Diode Module

SKKE162-14 Description

The SKKE162-14 from Semikron is a diode module with a 1400 V / 195 A rating. Diode modules like this are common in rectifier front ends, DC power supplies, welders and plating equipment. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the SKKE162-14, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Semikron SKKE162-14 is used for AC/AC converters, line rectifiers for transistorized AC motor controllers, AC motor controllers and field supply for DC motors.

Key Specifications

SKKE162-14 is a 1,400 V, 160 A diode module. Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Diode module
Repetitive peak reverse voltage (VRRM / VDRM)	1,400 V
Non-repetitive peak reverse voltage (VRSM)	1,500 V
Average on-state / forward current	160 A (sin. 180°, Tc = 95 °C)
RMS current, max. (continuous)	310 A
Surge current (10 ms, Tvj = 125 °C)	5,000 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.5 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Weight	approx. 165 g
Datasheet	Available on this page (PDF)
