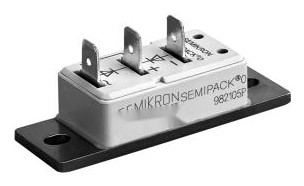

SKKE15-14 Semikron - Power Transistor Module

SKKE15-14 Description

SKKE15-14 is a 1400 V, 15 A diode module made by Semikron. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the SKKE15-14 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Semikron SKKE15-14 is used for AC/AC converters, line rectifiers for transistorized AC motor controllers, AC motor controllers and field supply for DC motors.

Key Specifications

SKKE15-14 is a 1,400 V, 15 A diode module. Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Diode module
Repetitive peak reverse voltage (VRRM / VDRM)	1,400 V
Non-repetitive peak reverse voltage (VRSM)	1,500 V
Average on-state / forward current	15 A (sin. 180°, Tc = 82 °C)
RMS current, max. (continuous)	24 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.85 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Package	SEMIPACK 0
Weight	approx. 50 g
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKE15-14 (reply within 24 hours)
