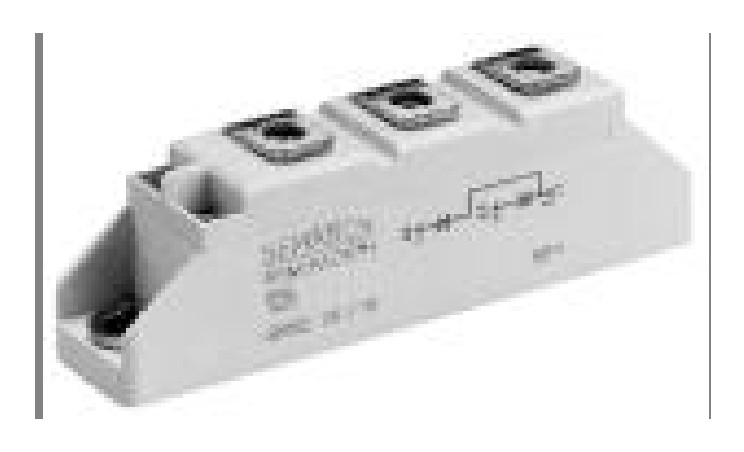

SKKD26-14 Semikron - Power Transistor Module

SKKD26-14 Description

Semikron SKKD26-14 is a diode module rated at 1400 V and 31 A. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Need the SKKD26-14? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Semikron SKKD26-14 is used for AC/AC converters, line rectifiers for transistorized AC motor controllers, AC motor controllers and field supply for DC motors.

Key Specifications

SKKD26-14 is a 1,400 V, 26 A diode module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Diode module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,400 V
Non-repetitive peak reverse voltage (VRSM)	1,500 V
Average on-state / forward current	26 A (sin. 180°, Tc = 93 °C)
Surge current (10 ms, Tvj = 125 °C)	480 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.35 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Package	SEMIPACK 1
Weight	approx. 95 g
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKD26-14 (reply within 24 hours)
