SKKD26-12 Semikron - Power Transistor Module

SKKD26-12 Description

The SKKD26-12 from Semikron is a diode module with a 1200 V / 31 A rating. Diode modules like this are common in rectifier front ends, DC power supplies, welders and plating equipment. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the SKKD26-12 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Semikron SKKD26-12 is used for AC/AC converters, line rectifiers for transistorized AC motor controllers, AC motor controllers and field supply for DC motors.

Key Specifications

SKKD26-12 is a 1,200 V, 26 A diode module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Diode module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,200 V
Non-repetitive peak reverse voltage (VRSM)	1,300 V
Average on-state / forward current	26 A (sin. 180°, Tc = 93 °C)
Surge current (10 ms, Tvj = 125 °C)	480 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.35 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Package	SEMIPACK 1
Weight	approx. 95 g

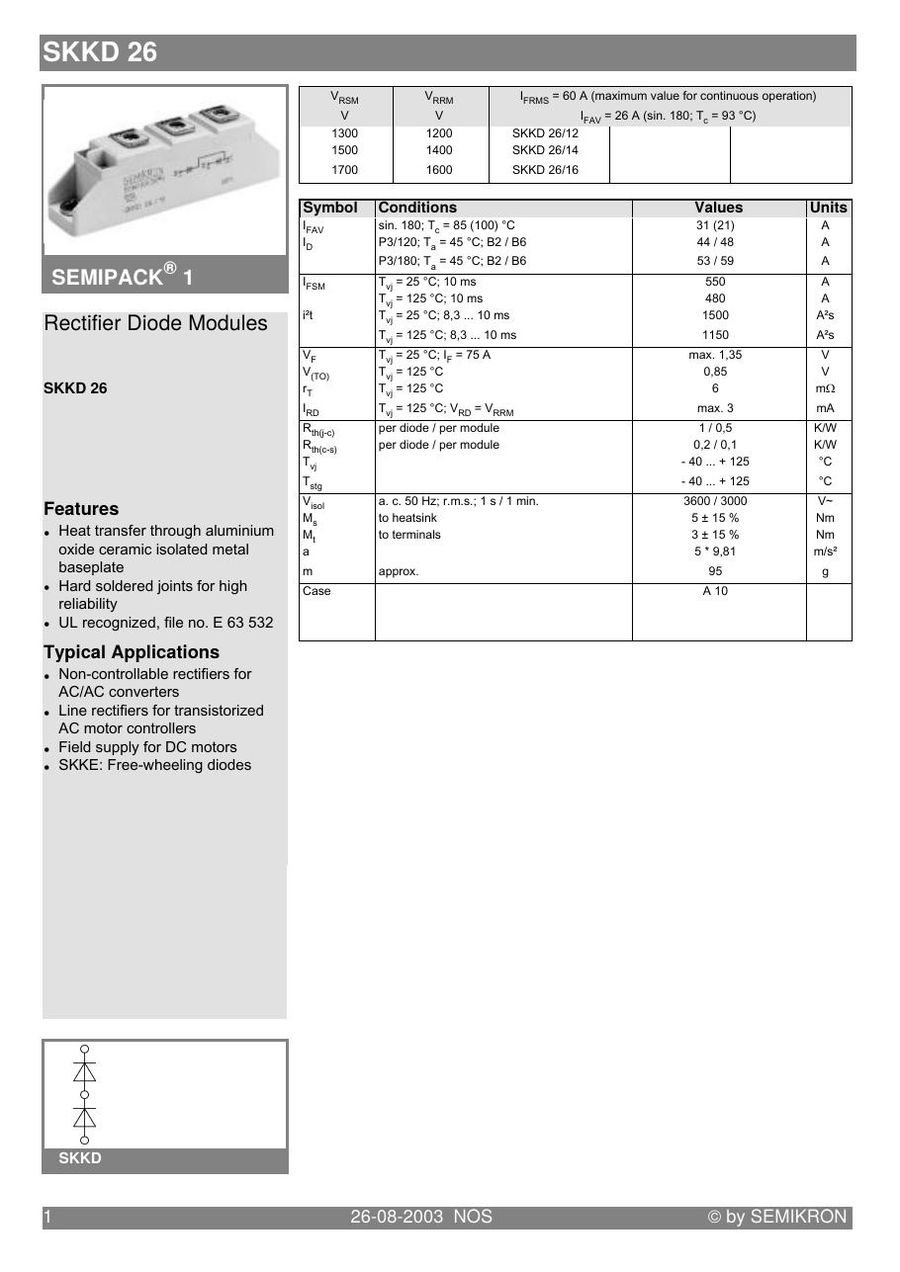

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKD26-12 (reply within 24 hours)
