SKD210-08 Semikron - Power Transistor Module
Also written as: SKD210/08
SKD210-08 Description
Semikron SKD210-08 is a three-phase rectifier bridge rated at 800 V and 220 A. A bridge like this is usually found at the front end of inverters, drives and switch-mode power supplies.
Request a quote for the SKD210-08 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.
Summary of Features
- Robust plastic case with screw terminals
- Large, isolated base plate
- Blocking voltage up to 1800 V
- High surge currents
- Easy chassis mounting
Target Applications
Semikron SKD210-08 is used for Three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies and battery charger rectifiers.
Key Specifications

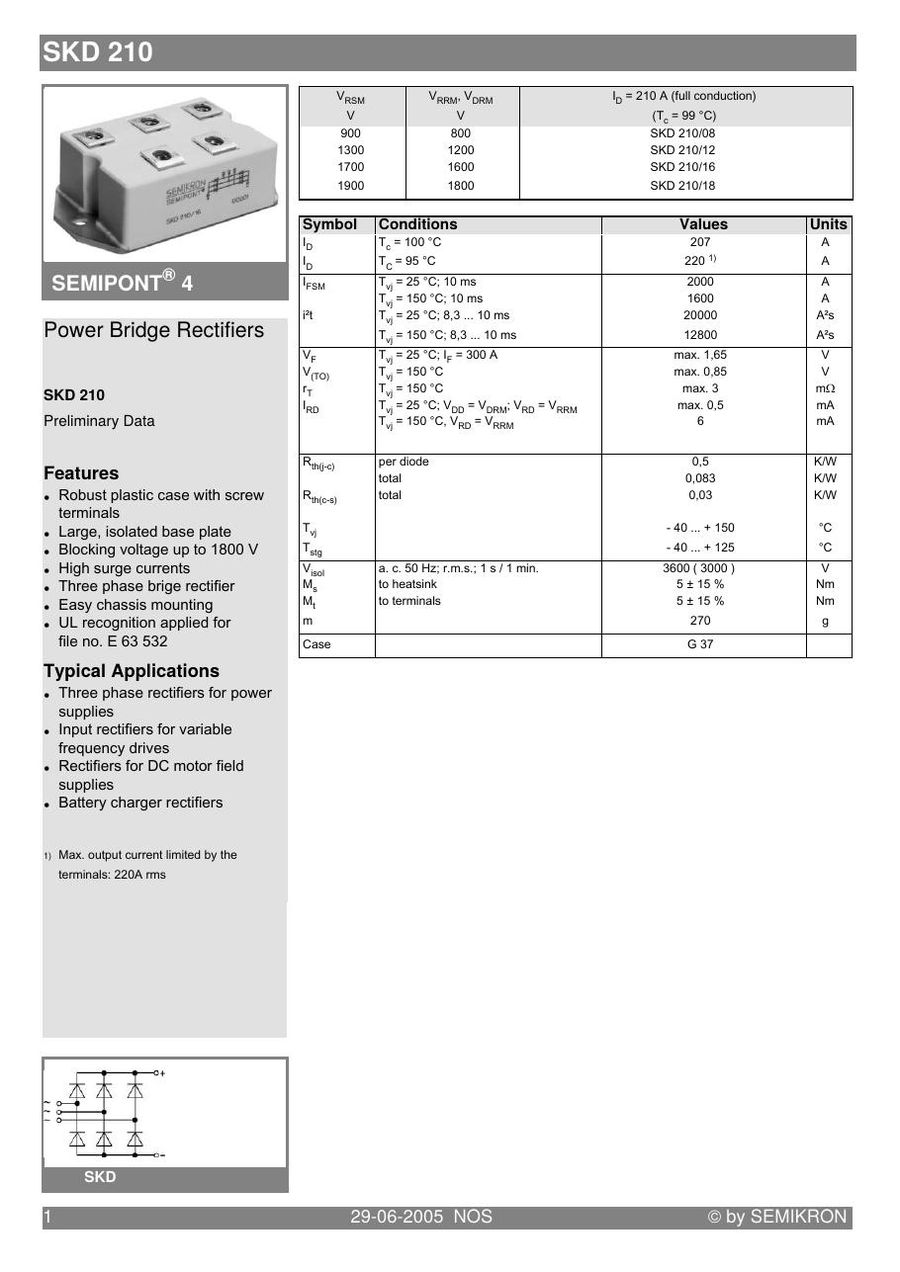

SKD210-08: key data from the Semikron datasheet.
| Parameter | Value |
|---|---|
| Product type | Three-phase rectifier bridge |
| Repetitive peak reverse voltage (VRRM / VDRM) | 800 V |
| Non-repetitive peak reverse voltage (VRSM) | 900 V |
| On-state / forward voltage, max. (Tvj = 25 °C) | 1.65 V |
| Datasheet | Available on this page (PDF) |
