SKD100-08 Semikron - Rectifier Bridge
Also written as: SKD100/08
SKD100-08 Description
The SKD100-08 from Semikron is a three-phase rectifier bridge with an 800 V / 100 A rating. Typical applications are the input rectifier of AC drives, DC power supplies and battery chargers.
USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the SKD100-08, and please confirm ratings against the datasheet before ordering.
Summary of Features
- Robust plastic case with screw terminals
- Large, isolated base plate
- Blocking voltage up to 1600 V
- High surge currents
- Easy chassis mounting
- UL recognized, file no. E63532
Target Applications
Semikron SKD100-08 is used for Three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies and battery charger rectifiers.
Key Specifications

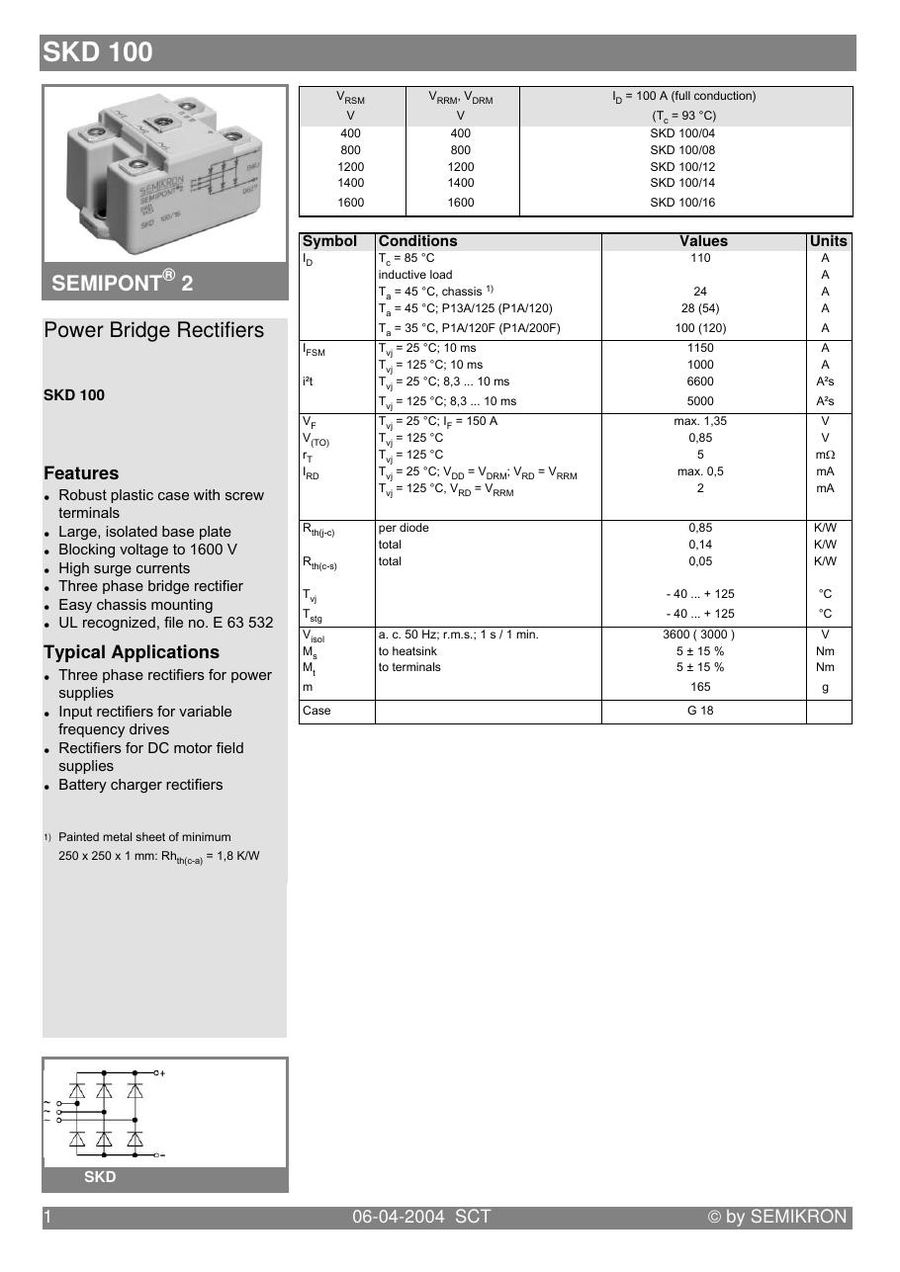

SKD100-08: key data from the Semikron datasheet.
| Parameter | Value |
|---|---|
| Product type | Three-phase rectifier bridge |
| Repetitive peak reverse voltage (VRRM / VDRM) | 800 V |
| Non-repetitive peak reverse voltage (VRSM) | 800 V |
| Surge current (10 ms, Tvj = 125 °C) | 1,000 A |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for SKD100-08 (reply within 24 hours)
Related Part Numbers
| SKD110-08 800V, 110A | SKD83-08 800V, 83A | SKD82-08 800V, 82A | SKD100-12 1200V, 100A |
| SKD160-08 800V, 160A | SKD62-08 800V, 62A | SKD60-08 800V, 60A | SKD100-14 1400V, 100A |
| SKD100-04 400V, 100A | SKD100-16 1600V, 100A | SKD100GAL123 1200V, 100A | SKD100GAL123D2 |
| SKD100GAL124D7 1200V, 100A | SKD110-04 400V, 110A | SKD110-12 1200V, 110A | SKCH43-08 800V, 43A |
