SKD100-04 Semikron - Power Transistor Module

SKD100-04 Description

SKD100-04 is a 400 V, 100 A three-phase rectifier bridge made by Semikron. It takes care of AC-to-DC input rectification in motor drives, power supplies, battery chargers and welding equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the SKD100-04 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Semikron SKD100-04 is used for Three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies and battery charger rectifiers.

Key Specifications

SKD100-04: key data from the Semikron datasheet.

Parameter	Value
Product type	Three-phase rectifier bridge
Repetitive peak reverse voltage (VRRM / VDRM)	400 V
Non-repetitive peak reverse voltage (VRSM)	400 V
Surge current (10 ms, Tvj = 125 °C)	1,000 A

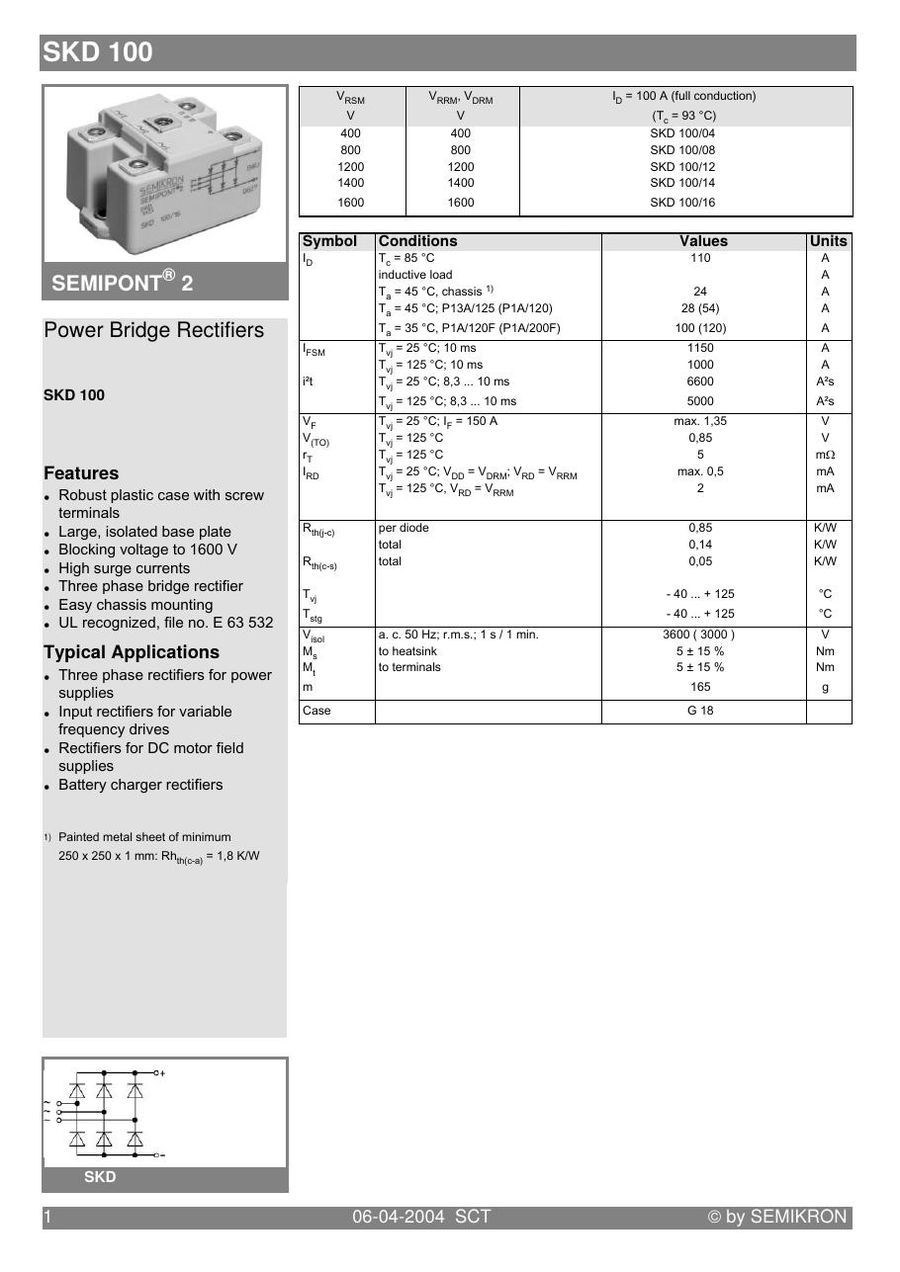

Datasheet	Available on this page (PDF)
