SK120GAL12F4T Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 120A

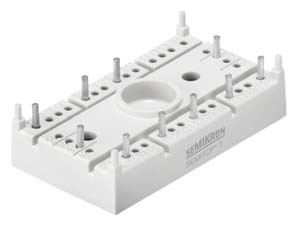

SK120GAL12F4T Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK120GAL12F4T Description

SK120GAL12F4T is a 1200 V / 120 A chopper IGBT module from Semikron Danfoss (SEMITOP 3 package). Typical applications: solar, Energy storage systems.

USComponent supplies SK120GAL12F4T and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • One screw mounting module
  • Low inductive design
  • Robust and soft switching freewheeling diode CAL4F
  • Integrated NTC temperature sensor

Target Applications

Semikron SK120GAL12F4T is used for Solar, Energy storage systems.

Key Specifications

SK120GAL12F4T is a 1200 V / 120 A chopper IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
ConfigurationChopper
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)120 A
Chip technologyIGBT 4 Fast (Trench)
PackageSEMITOP 3
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK120GAL12F4T (reply within 24 hours)
