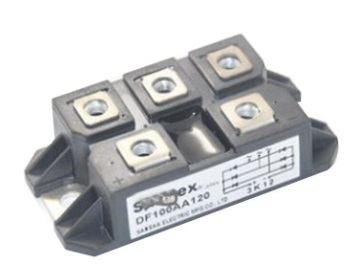

DF100AA120SanRex - Diode Module

DF100AA120 Description

The SanRex DF100AA120 is a diode module rated at 1200 V and 100 A, available from USComponent. This type of device is widely used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the DF100AA120.

Target Applications

SanRex DF100AA120 is used for AC, DC Motor Drive/AVR/Switching -for three phase rectification.

Key Specifications

Manufacturer	SanRex
Configuration	Three-phase diode bridge (six diodes), isolated mounting base
VRRM	1200 V
Output current ID	100 A (DC, three-phase full wave, TC = 102 °C)
Surge current IFSM	910 / 1000 A (50 / 60 Hz, 1 cycle)
I²t	4100 A²s
Forward voltage VFM max.	1.2 V @ 100 A
Isolation voltage	2500 V (AC RMS, 1 min)
Terminal torque	M5: 1.5 - 2.5 N·m recommended
Weight	160 g
