DF1000R17IE4D_B2 Infineon - IGBT Module

Discontinued: Infineon recommended replacement: FF1000R17IE4D_B2. We supply both the original DF1000R17IE4D_B2 and the replacement - check the datasheets before switching.

Category: IGBT Modules

Specifications: 1700V, 1000A

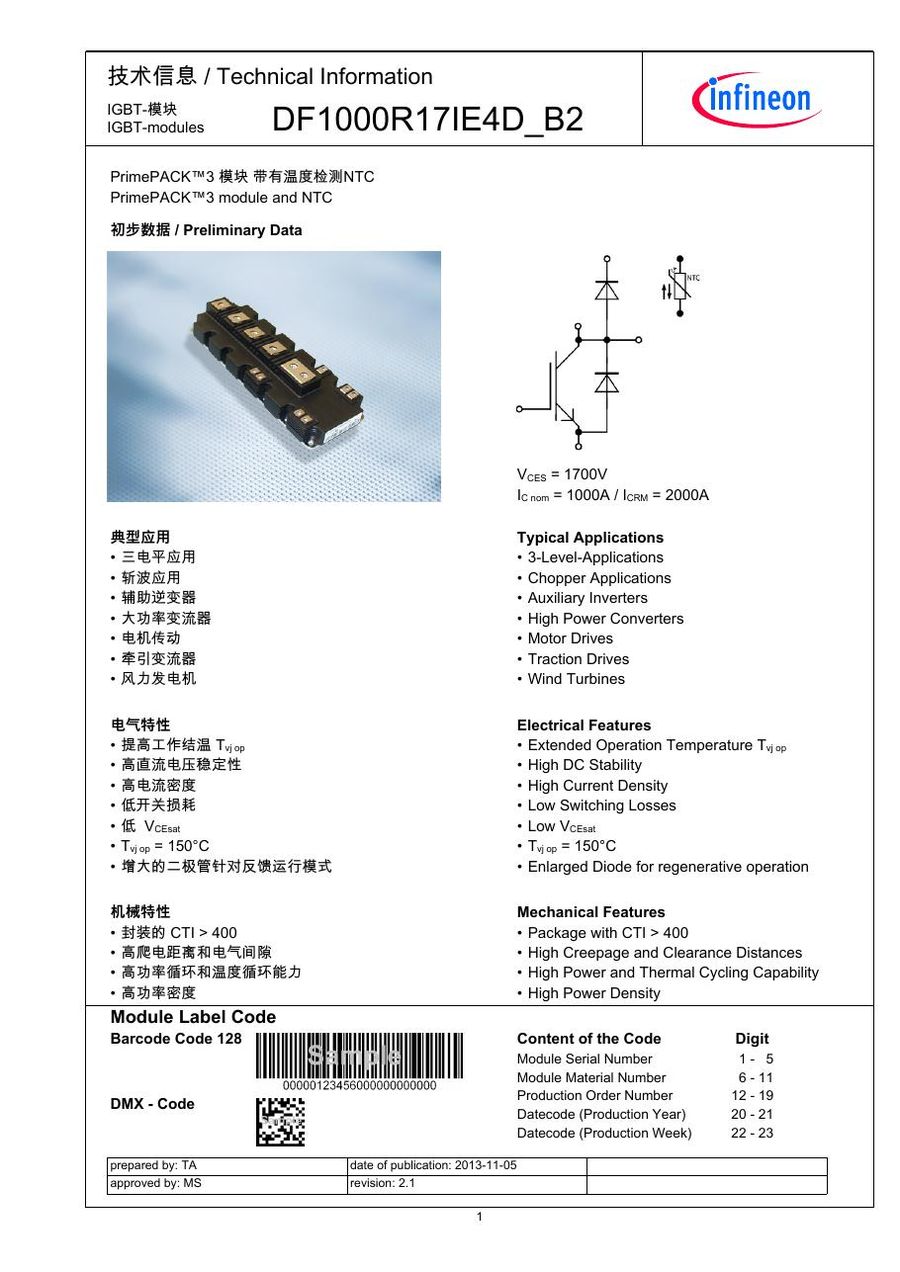

DF1000R17IE4D_B2 IGBT from Eupec Infineon

Representative image – actual product may differ

Discontinued by the manufacturer - we source original new and surplus stock. Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DF1000R17IE4D_B2 Description

Rated at 1700 V and 1000 A, the Infineon Technologies DF1000R17IE4D_B2 is an IGBT. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

We help engineers and repair technicians find parts like the DF1000R17IE4D_B2, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

  • Extended Operation Temperature Tvj op
  • High DC Stability
  • High Current Density
  • Low Switching Losses
  • Low VCEsat
  • Enlarged Diode for regenerative operation
  • Package with CTI > 400
  • High Creepage and Clearance Distances
  • High Power and Thermal Cycling Capability
  • High Power Density

Target Applications

Infineon DF1000R17IE4D_B2 is used for 3-Level-Applications, Chopper Applications, Auxiliary Inverters, High Power Converters, Motor Drives, Traction Drives and Wind Turbines.

Key Specifications

DF1000R17IE4D_B2 is a 1,700 V, 1000 A diode. Source: manufacturer datasheet.

ParameterValue
Product typeDiode
Repetitive peak reverse voltage (VRRM)1,700 V
Rated forward / output current1000 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DF1000R17IE4D_B2 (reply within 24 hours)

Related Part Numbers

DF1000R17IE4
1700V, 1000A		DF1000R17IE4P
1700V, 1000A		DF1000R12IP4D
1200V, 1000A		DF650R17IE4
1700V, 650A
DF900R12IP4D
1200V, 900A		DF900R12IP4DV
1200V, 900A		DF100AA120
1200V, 100A		DF100AA160
1600V, 100A
DF100BA40
400V, 100A		DF100BA80
800V, 100A		DF100LA120
1200V, 100A		DF100LA160
1600V, 100A
DF100LA80
800V, 100A		DF100LB160
1600V, 100A		DF100LB80
800V, 100A		DF100R07W1H5FP_B53
650V, 50A
