PM50CSD120 Powerex - Power Transistor Module

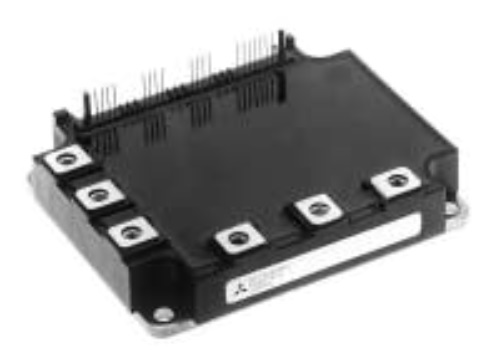

PM50CSD120 Description

PM50CSD120 is a 1200 V, 50 A intelligent power module (IPM) made by Powerex. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

We help engineers and repair technicians find parts like the PM50CSD120, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Powerex PM50CSD120 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Powerex (Mitsubishi)
Configuration	Intellimod Intelligent Power Module, three-phase IGBT inverter
Built-in protection	Short circuit, over current, over temperature, under voltage
VCES	1200 V
IC	±50 A (TC = 25 °C)
ICP	±100 A
Supply voltage protected by OC and SC	800 V
Isolation voltage	2500 V (AC, 1 min)
Terminal torque	M5: 31 in-lb
Mounting torque	M5: 31 in-lb
Weight	560 g
