CD421690 Powerex - Thyristor / Diode Module

CD421690 Description

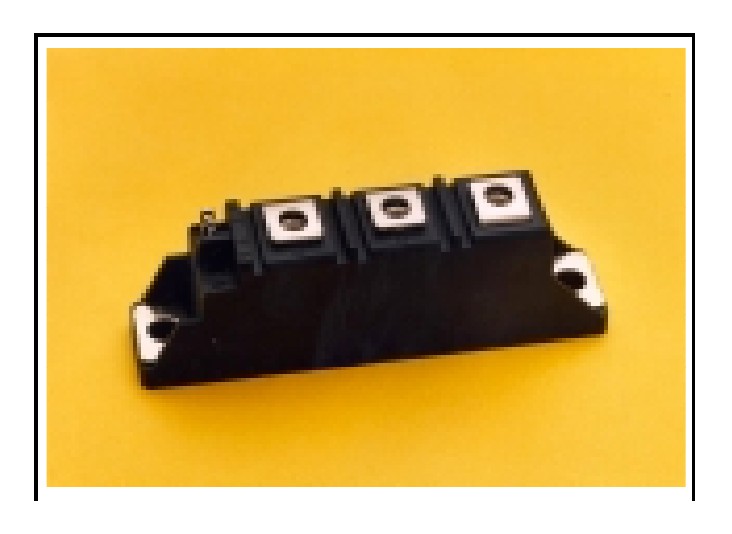

The CD421690 from Powerex is a dual SCR module (POW-R-BLOK). It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the CD421690, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Powerex CD421690 is used for General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for CNC Machine Tools, Robotics (Servo Drive for Robots), Switching Power Supplies for Welding Machines.

Key Specifications

CD421690 is a 1,600 V, 90 A dual SCR module (POW-R-BLOK). Source: manufacturer datasheet.

Parameter	Value
Product type	Dual SCR module (POW-R-BLOK)
Repetitive peak voltage (VDRM / VRRM)	1,600 V
Rated on-state current	90 A
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CD421690 (reply within 24 hours)
