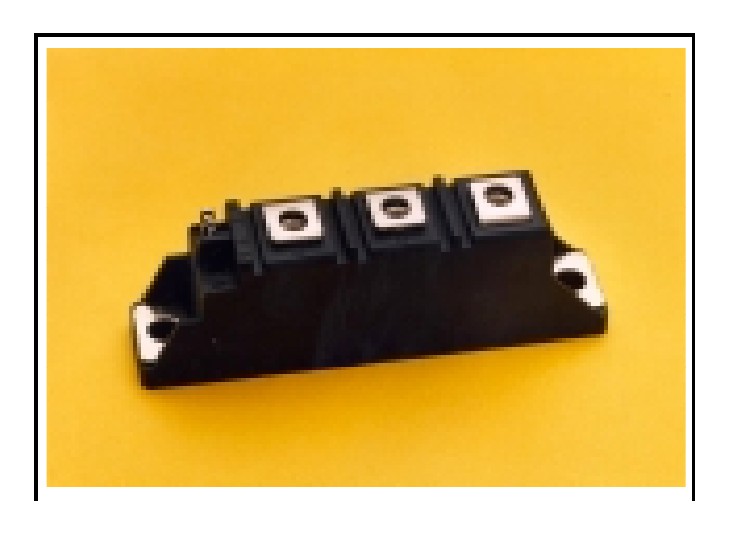

CD420860 Powerex - Thyristor / Diode Module

CD420860 Description

The CD420860 from Powerex is a dual SCR module (POW-R-BLOK). It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CD420860 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Powerex CD420860 is used for General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for CNC Machine Tools, Robotics (Servo Drive for Robots), Switching Power Supplies for Welding Machines.

Key Specifications

CD420860 is an 800 V, 60 A dual SCR module (POW-R-BLOK). Source: manufacturer datasheet.

Parameter	Value
Product type	Dual SCR module (POW-R-BLOK)
Repetitive peak voltage (VDRM / VRRM)	800 V
Rated on-state current	60 A
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CD420860 (reply within 24 hours)
