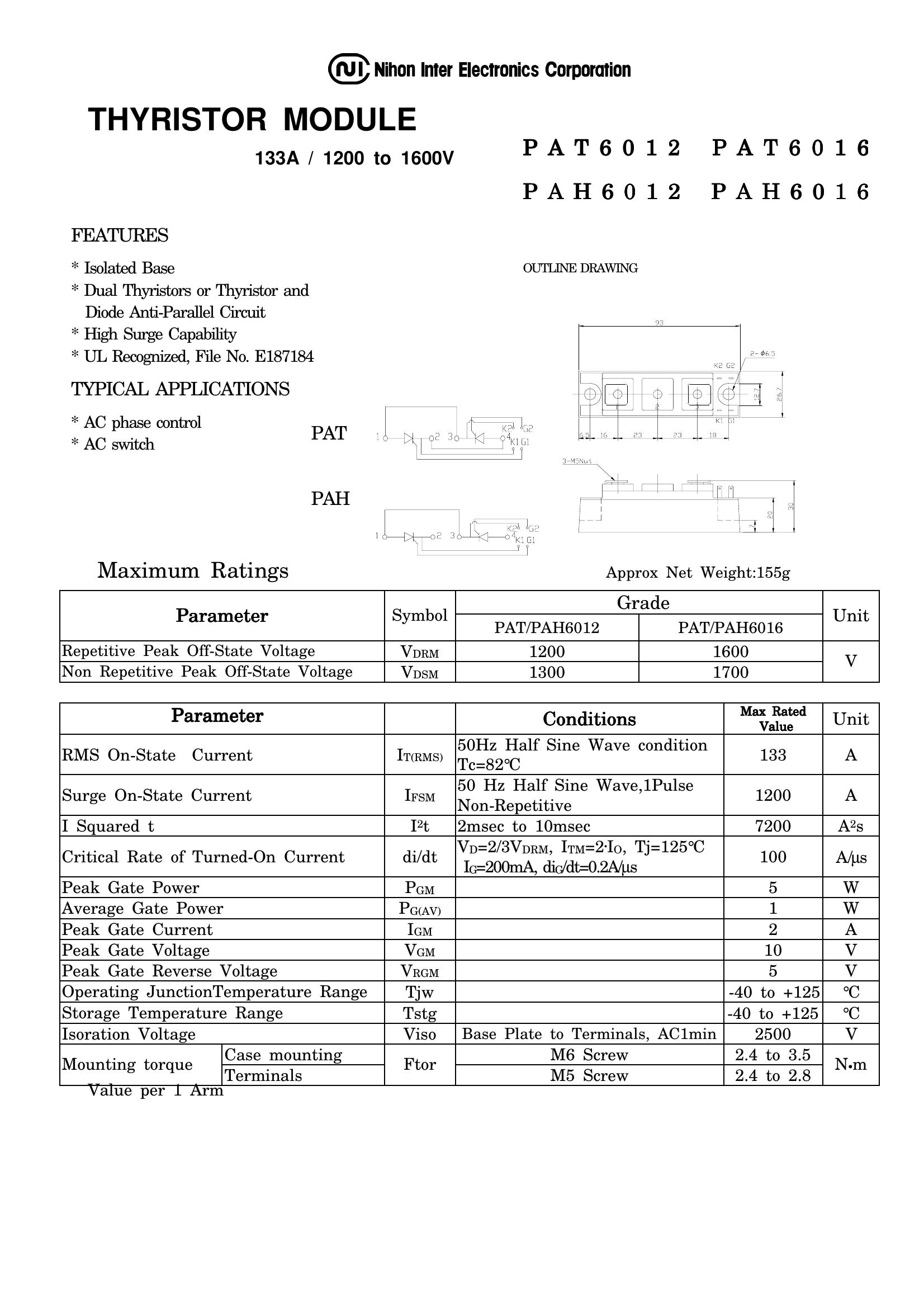

PAT6016 NIEC - Thyristor / Diode Module
PAT6016 Description
PAT6016 is a 1600 V, 133 A thyristor / diode module made by Nihon Inter (NIEC). You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.
USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the PAT6016, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.
Summary of Features
Target Applications
NIEC PAT6016 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications
| Manufacturer | NIEC |
| Category | Thyristor / Diode Modules |
| Rated voltage | 1600 V |
| Rated current | 133 A |
Technical document (PDF) | Request a quote for PAT6016 (reply within 24 hours)
Related Part Numbers
| PAT6012 1200(V) / 133(A) | PAT4008 800(V) / 630(A) | PAT10012 1200(V) / 222(A) | PAT10016 |
| PAT3016 1600(V) / 300(A) | PAT3012 1200(V) / 66(A) | PAT15012 | PAT15016 1600(V) / 235(A) |
| PAT608 800(V) / 133(A) | PAT608AC 800(V) / 133(A) | PAT40016 1600(V) / 630(A) | PAT40012 1200(V) / 630(A) |
| PAT308AC 800(V) / 66(A) | PAT308 800(V) / 66(A) | PAT2008 800(V) / 200(A) | PAT20016 1600(V) / 314(A) |
