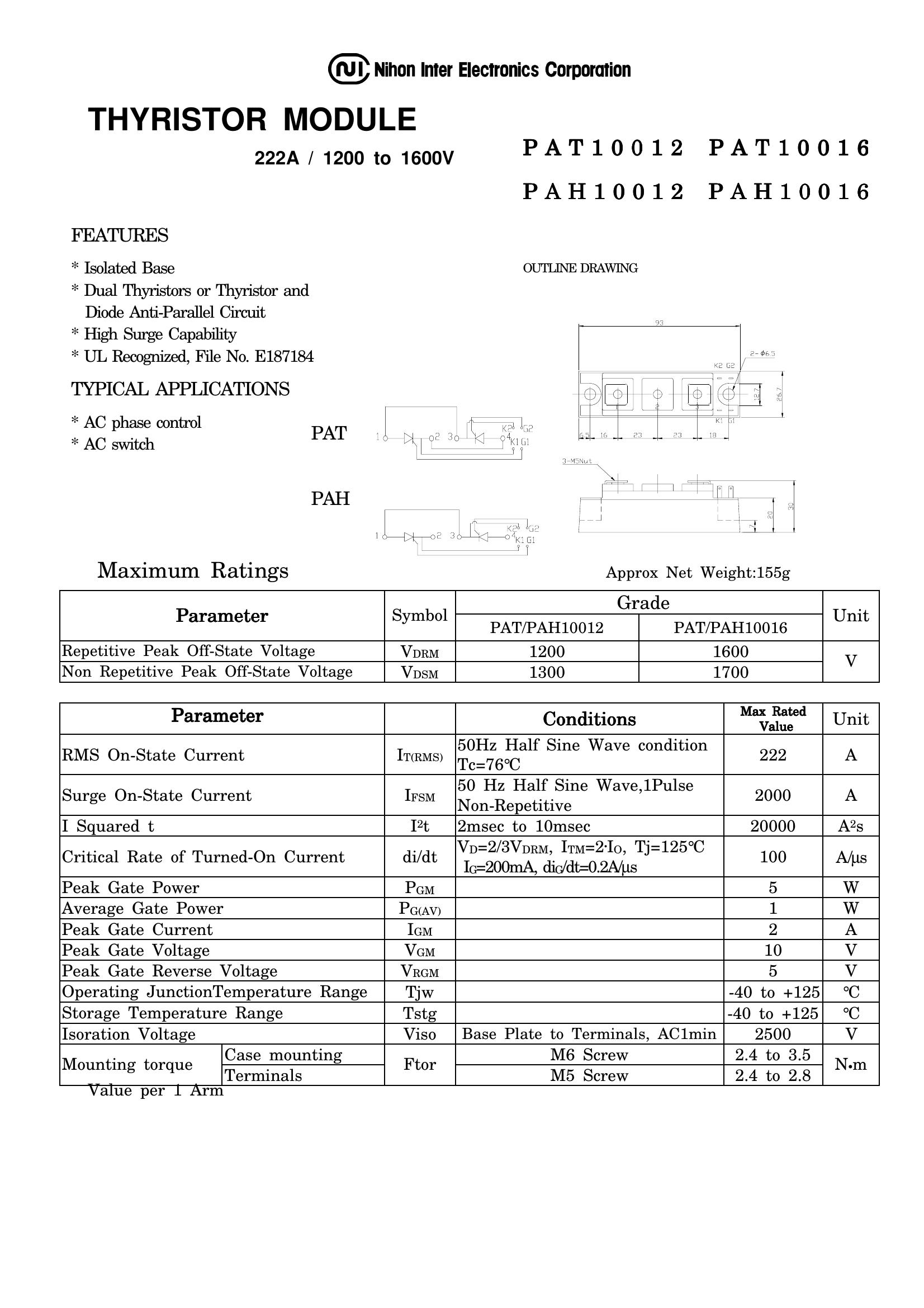

PAT10012 NIEC - Thyristor / Diode Module
PAT10012 Description
Nihon Inter (NIEC) makes the PAT10012, a 1200 V, 222 A thyristor / diode module. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.
USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PAT10012 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.
Summary of Features
Target Applications
NIEC PAT10012 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications
| Manufacturer | NIEC |
| Category | Thyristor / Diode Modules |
| Rated voltage | 1200 V |
| Rated current | 222 A |
Technical document (PDF) | Request a quote for PAT10012 (reply within 24 hours)
Related Part Numbers
| PAT10016 | PAT15012 | PAT15016 1600(V) / 235(A) | PAT6016 1600(V) / 133(A) |
| PAT6012 1200(V) / 133(A) | PAT20012 1200(V) / 200(A) | PAT20016 1600(V) / 314(A) | PAT4008 800(V) / 630(A) |
| PAT1008 800(V) / 222(A) | PAT1008AC 800(V) / 222(A) | PAT1508 800(V) / 235(A) | PAT2008 800(V) / 200(A) |
| PAT3012 1200(V) / 66(A) | PAT3016 1600(V) / 300(A) | PAH75S48-5 | PAH75S48-3.3 |
