TM20RA-MMitsubishi - Thyristor / Diode Module

TM20RA-M Description

Mitsubishi Electric TM20RA-M is a thyristor module rated at 400 V and 20 A. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM20RA-M.

Target Applications

Mitsubishi TM20RA-M is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor / Diode Module
Rated voltage	400 V
Rated current	20 A

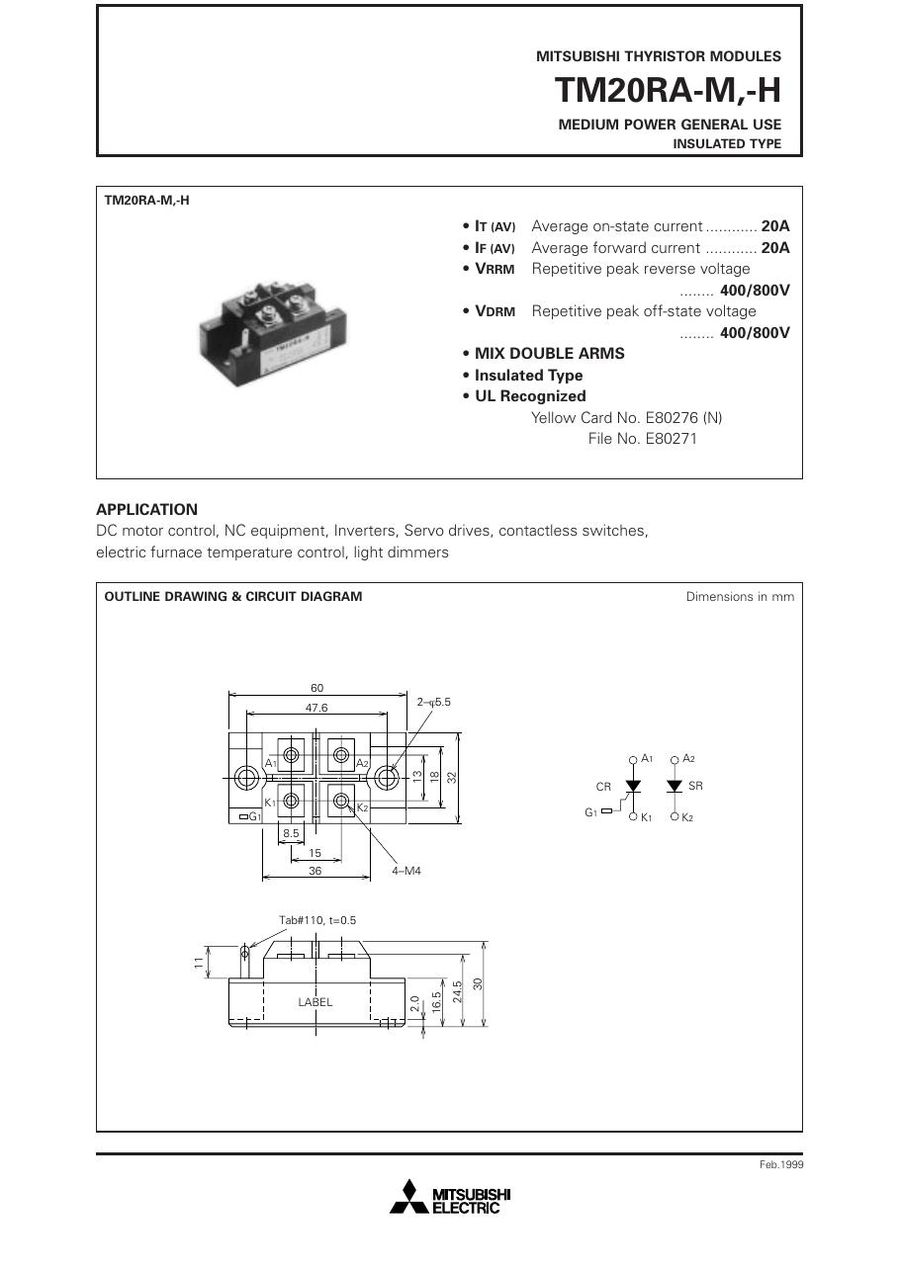

Download TM20RA-M Datasheet

TM20RA-M PDF Datasheet
