TM20RA-HMitsubishi - Thyristor Module

TM20RA-H Description

The Mitsubishi Electric TM20RA-H is a thyristor module rated at 600 V and 20 A, available from USComponent. Medium Power General Use Insulated Type Thyristor Module. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM20RA-H.

Summary of Features

Target Applications

Mitsubishi TM20RA-H is used for DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control and Light dimmers.

Key Specifications

TM20RA-H is a 20 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	20 A
Datasheet	Available on this page (PDF)

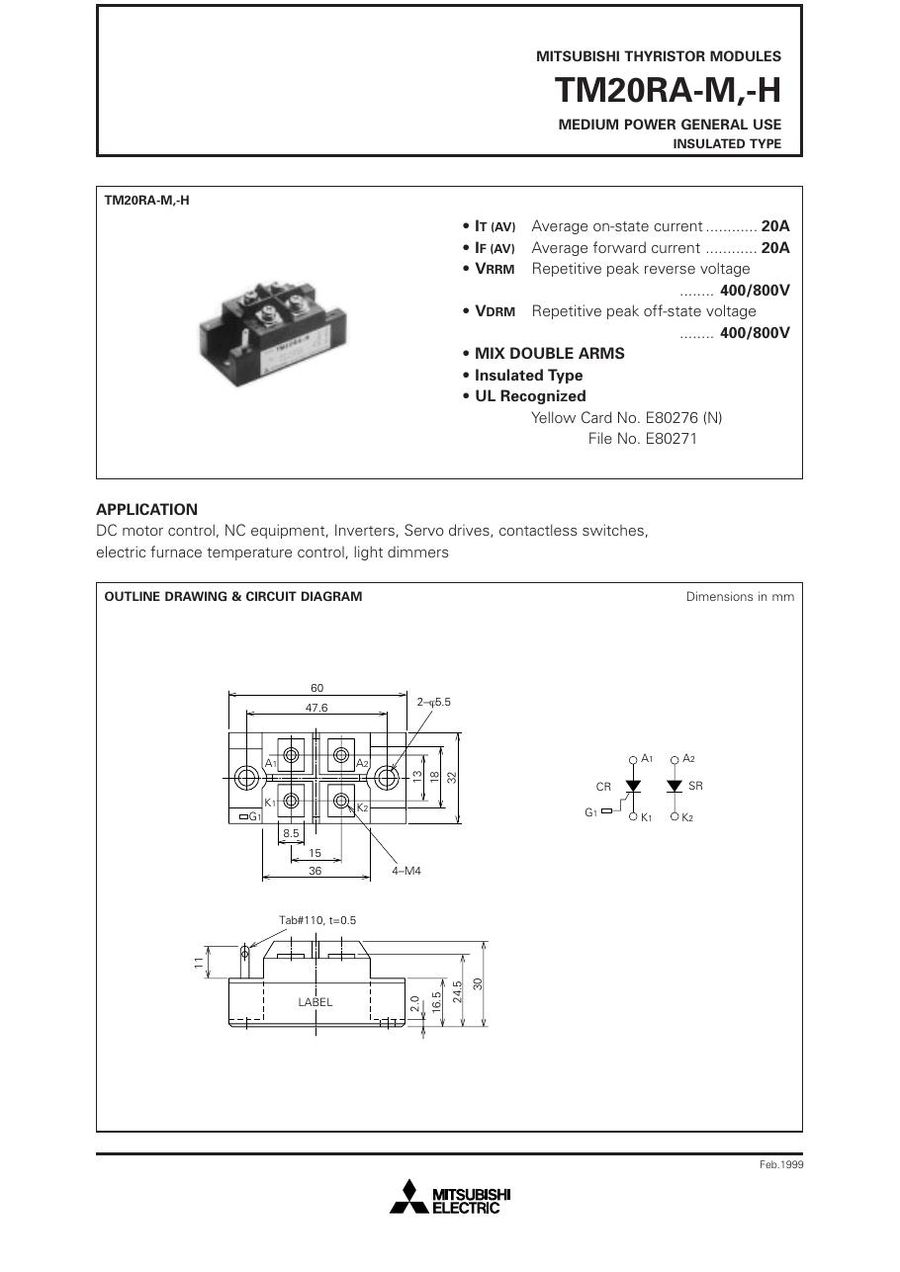

Download TM20RA-H Datasheet

TM20RA-H PDF Datasheet
