RM75TPM-2HMitsubishi - Diode Module

RM75TPM-2H Description

Mitsubishi Electric RM75TPM-2H is a diode module rated at 1600 V and 150 A. This type of device is widely used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM75TPM-2H.

Summary of Features

Target Applications

Mitsubishi RM75TPM-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM75TPM-2H is a 75 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Rated forward / output current	75 A
Datasheet	Available on this page (PDF)

Download RM75TPM-2H Datasheet

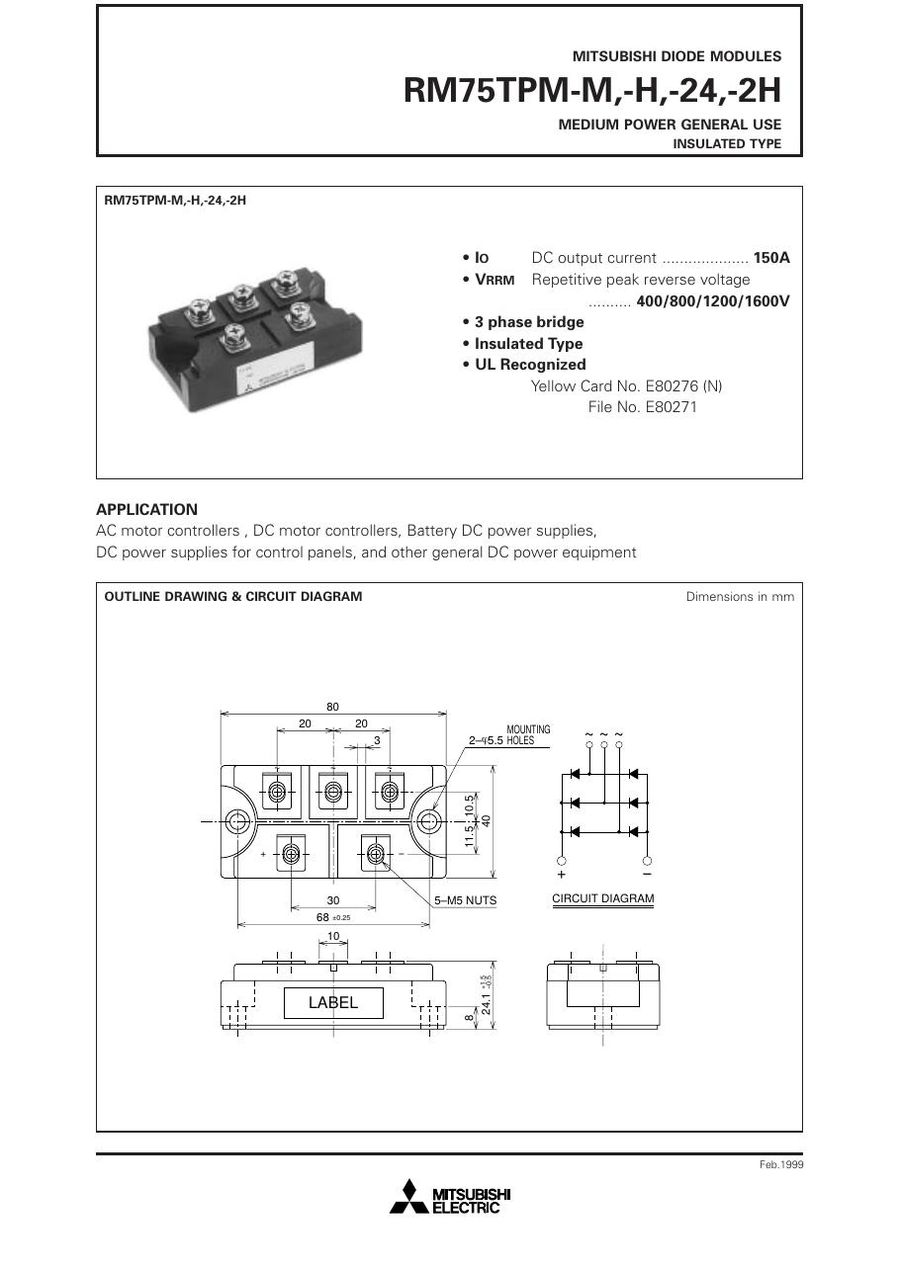

RM75TPM-2H PDF Datasheet
