RM75TC-HMitsubishi - Diode Module

RM75TC-H Description

The Mitsubishi Electric RM75TC-H is a diode module rated at 800 V and 50 A. Typical applications for this type of device include input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM75TC-H.

Summary of Features

Target Applications

Mitsubishi RM75TC-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM75TC-H is a 75 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Rated forward / output current	75 A
Datasheet	Available on this page (PDF)

Download RM75TC-H Datasheet

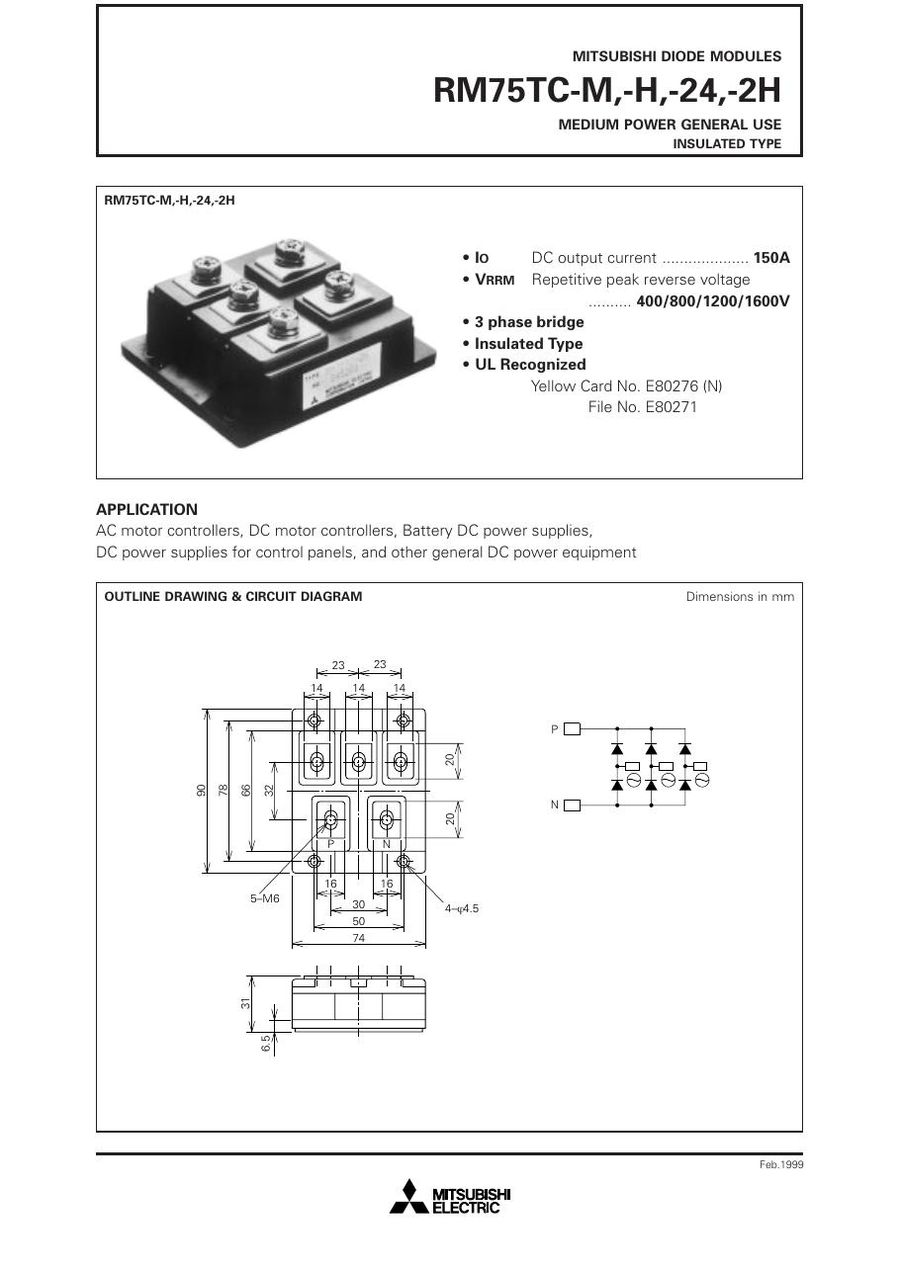

RM75TC-H PDF Datasheet
