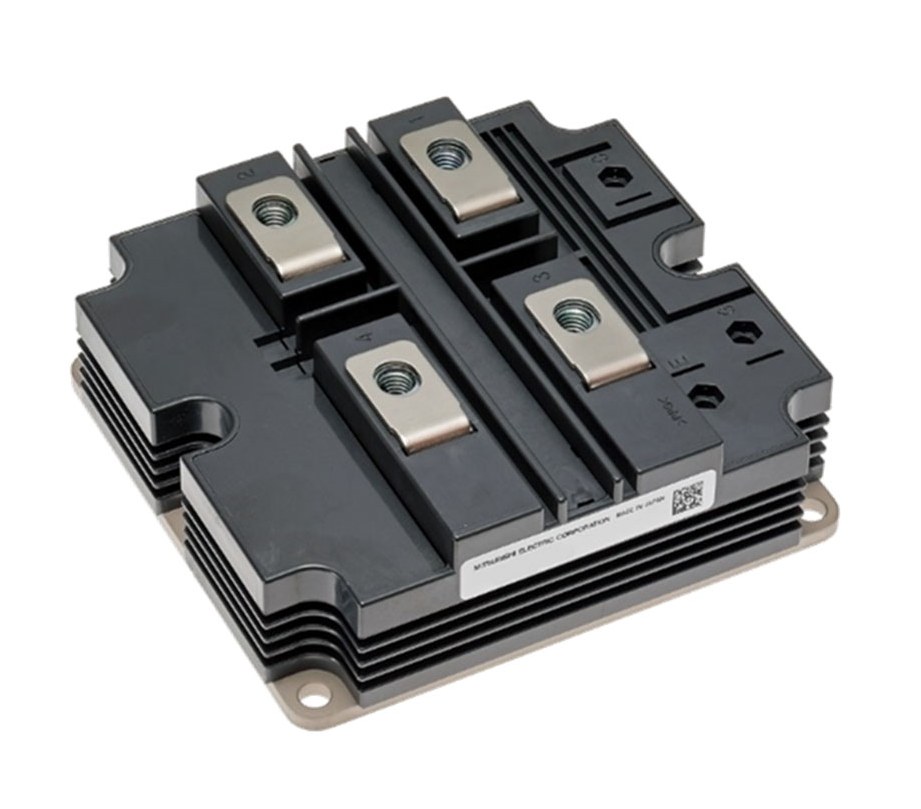

RM450DG-90X Mitsubishi - Diode Module

RM450DG-90X Description

RM450DG-90X is a 4500 V / 450 A dual (half-bridge) high voltage diode module from Mitsubishi Electric (140 x 130 IHM package). Typical applications: traction drives, High Reliability Converters / Inverters, DC choppers.

USComponent supplies RM450DG-90X and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi RM450DG-90X is used for Traction drives, High Reliability Converters / Inverters, DC choppers.

Key Specifications

RM450DG-90X is a 4500 V / 450 A dual (half-bridge) high voltage diode module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	High voltage diode module
Series	3-level building block
Configuration	Dual (half-bridge)
Repetitive peak reverse voltage (VRRM)	4500 V
Forward current (IF)	450 A
Isolation voltage (Viso)	10,200 V RMS
Package	140 x 130 IHM
Package size	140 x 130 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM450DG-90X (reply within 24 hours)
