RM30TPM-HMitsubishi - Diode Module

RM30TPM-H Description

Mitsubishi Electric RM30TPM-H is a diode module rated at 800 V and 60 A. Medium Power General Use Insulated Type Diode Module. Typical applications for this type of device include input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM30TPM-H.

Summary of Features

Target Applications

Mitsubishi RM30TPM-H is used for AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment.

Key Specifications

RM30TPM-H is a 30 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Rated forward / output current	30 A
Datasheet	Available on this page (PDF)

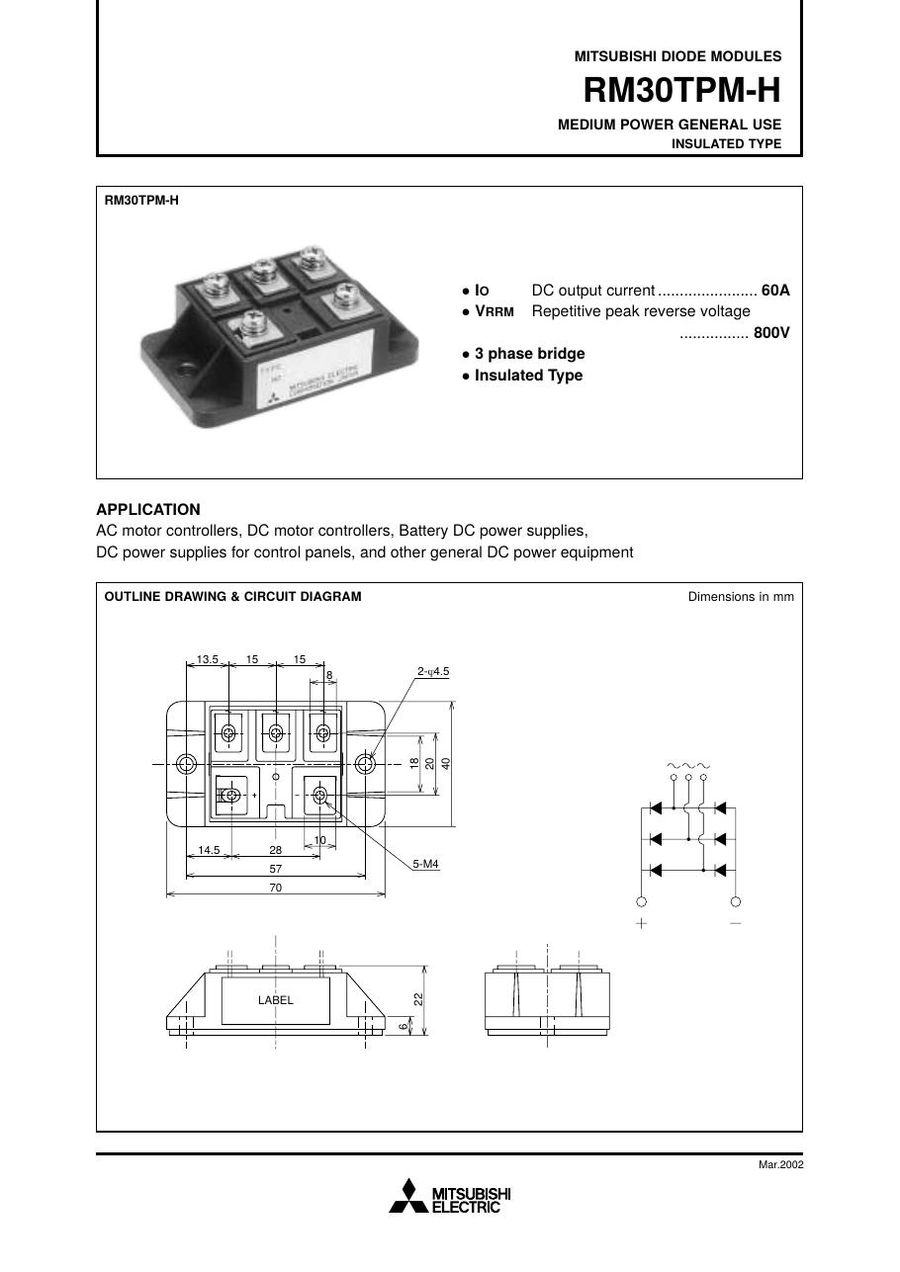

Download RM30TPM-H Datasheet

RM30TPM-H PDF Datasheet
