RM20TPM-HMitsubishi - Diode Module

RM20TPM-H Description

The Mitsubishi Electric RM20TPM-H is a diode module rated at 800 V and 40 A, available from USComponent. Medium Power General Use Insulated Type Diode Module. This type of device is widely used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM20TPM-H.

Summary of Features

Target Applications

Mitsubishi RM20TPM-H is used for AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels and other general DC power equipment.

Key Specifications

RM20TPM-H is a 20 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Rated forward / output current	20 A
Datasheet	Available on this page (PDF)

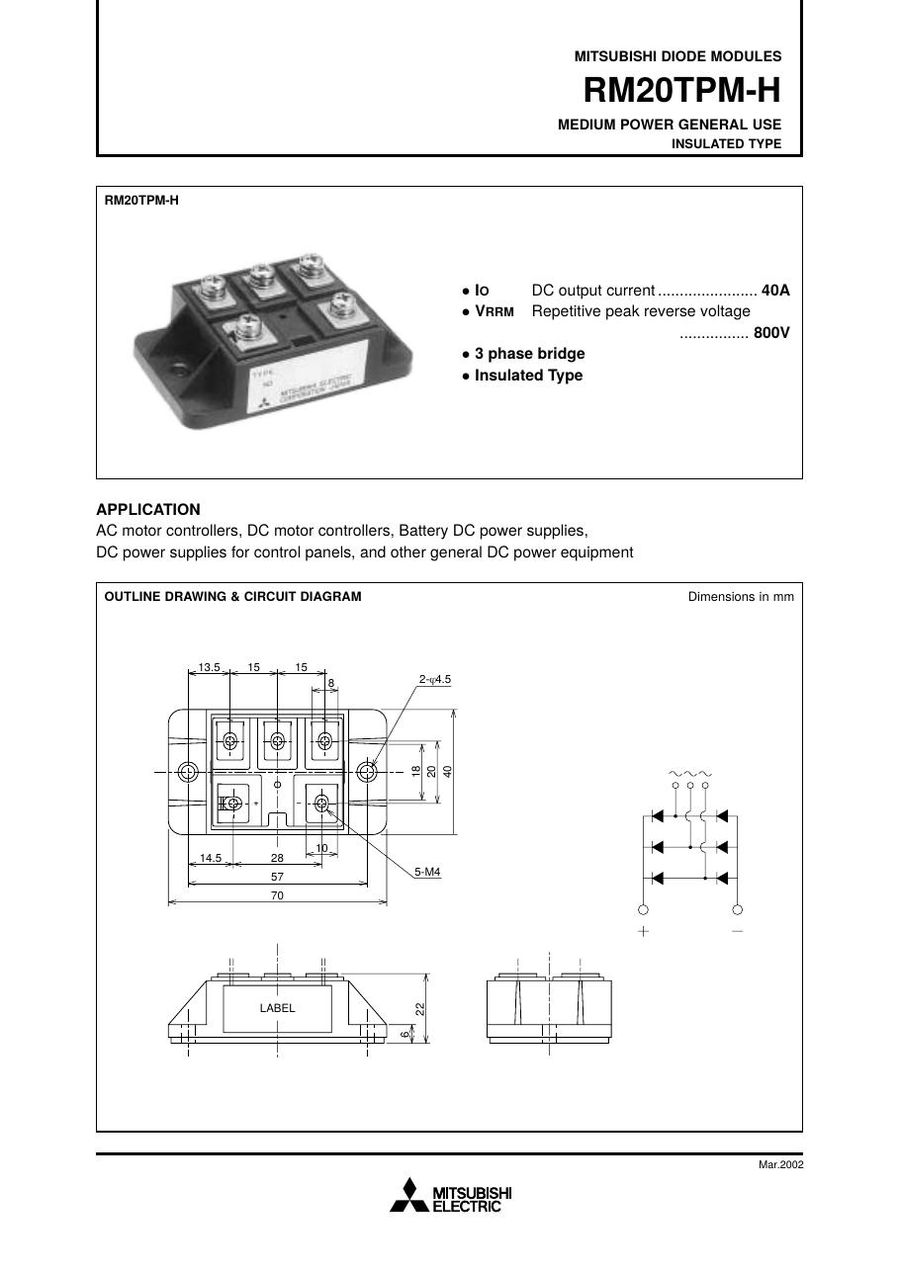

Download RM20TPM-H Datasheet

RM20TPM-H PDF Datasheet
