RM25HG-24S Mitsubishi - Diode Module

RM25HG-24S Description

Mitsubishi Electric RM25HG-24S is a diode module rated at 1200 V and 25 A. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the RM25HG-24S; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi RM25HG-24S is used for snubber circuit (IPM or IGBT module).

Key Specifications

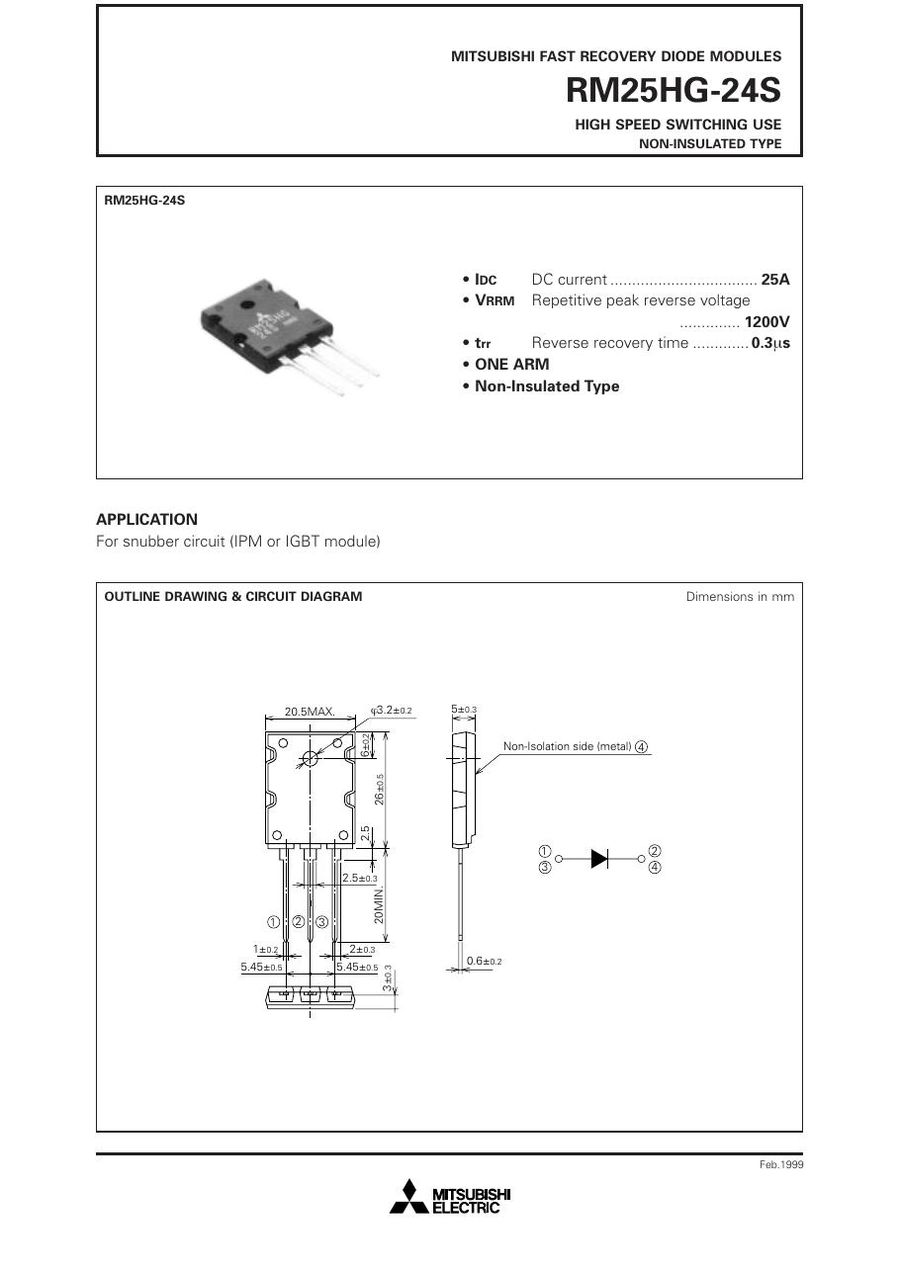

RM25HG-24S is a 1200 V / 25 A fast recovery diode module from Mitsubishi Electric. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Fast recovery diode module
Configuration	Single (one arm)
Package	Non-insulated type
Repetitive peak reverse voltage (VRRM)	1200 V
Non-repetitive peak reverse voltage	1350 V
Reverse DC voltage (VR(DC))	960 V
DC current (IDC)	25 A (resistive load, TC = 80 °C)
Surge forward current (IFSM)	500 A (one half cycle at 60 Hz, peak)
Forward voltage (VFM)	4.0 V max (IFM = 100 A, Tj = 25 °C)
Reverse recovery time (trr)	0.3 µs max (IFM = 100 A, di/dt = -500 A/µs, VR = 600 V)
Junction temperature (Tj)	-40 to +150 °C
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM25HG-24S (reply within 24 hours)
