RM20CA-12FMitsubishi - Diode Module

RM20CA-12F Description

The Mitsubishi Electric RM20CA-12F is a diode module rated at 600 V and 20 A. Components of this type are commonly used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM20CA-12F.

Summary of Features

Target Applications

Mitsubishi RM20CA-12F is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM20CA-12F is a 600 V, 20 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Repetitive peak reverse voltage (VRRM)	600 V
Rated forward / output current	20 A
Datasheet	Available on this page (PDF)

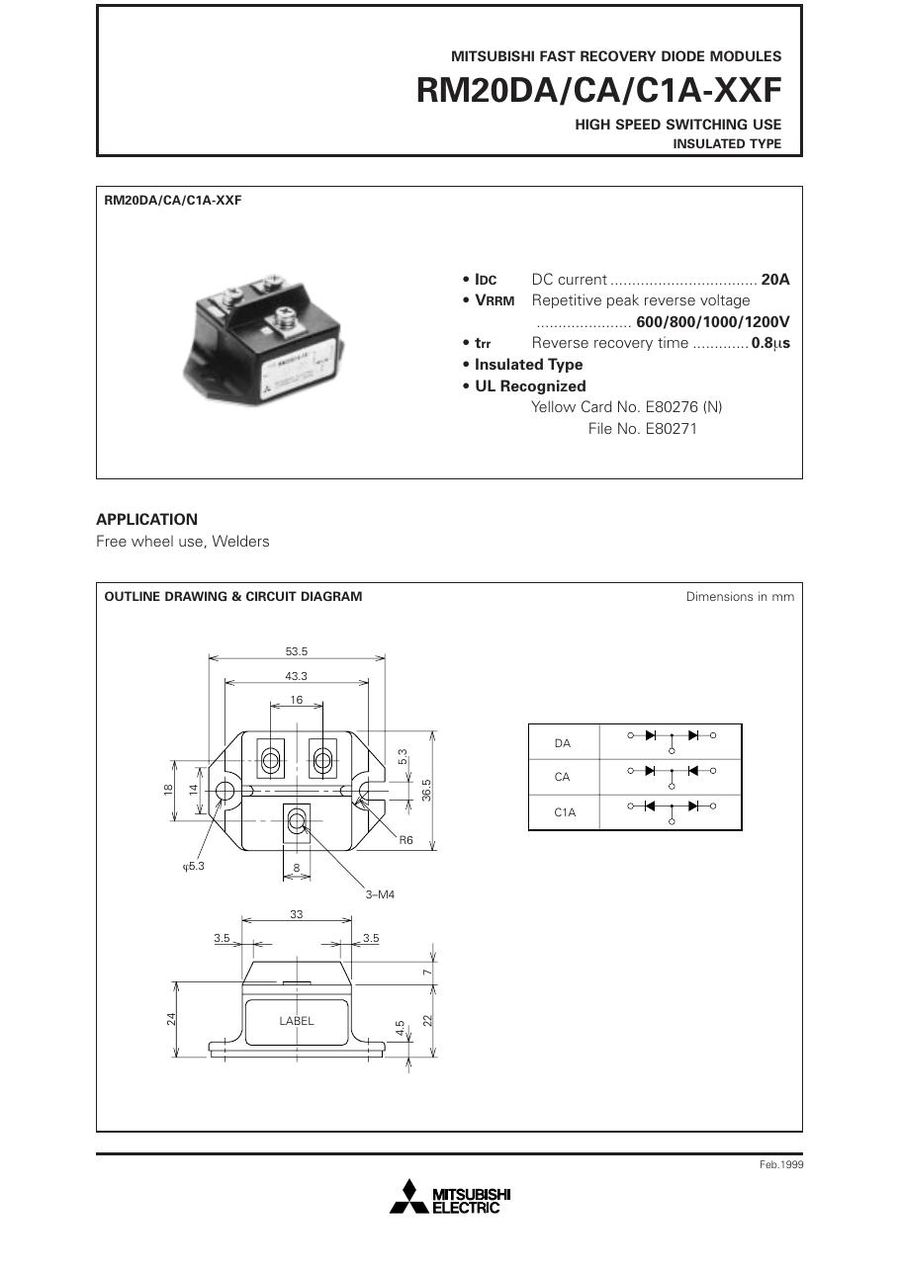

Download RM20CA-12F Datasheet

RM20CA-12F PDF Datasheet
