RM20C1A-12SMitsubishi - Diode Module

RM20C1A-12S Description

The Mitsubishi Electric RM20C1A-12S is a diode module rated at 600 V and 20 A. This type of device is widely used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM20C1A-12S.

Target Applications

Mitsubishi RM20C1A-12S is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Diode Module
Rated voltage	600 V
Rated current	20 A

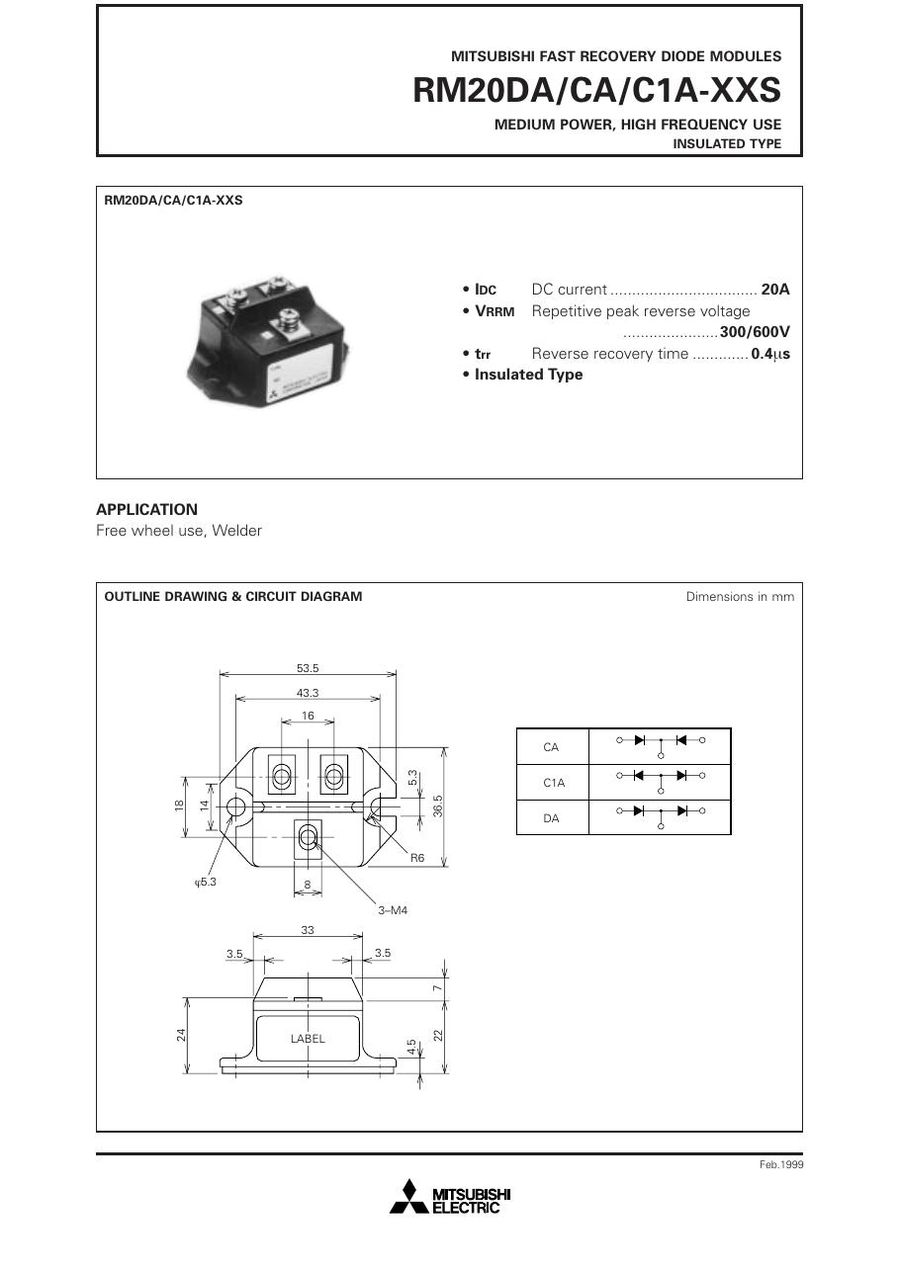

Download RM20C1A-12S Datasheet

RM20C1A-12S PDF Datasheet
