QM75TX-HBMitsubishi - Power Transistor Module

QM75TX-HB Description

The Mitsubishi Electric QM75TX-HB is a Darlington transistor module rated at 600 V and 75 A, available from USComponent. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM75TX-HB.

Summary of Features

Target Applications

Mitsubishi QM75TX-HB is used for Inverters, Servo Drives, UPS, DC Motor Controllers, NC Equipment and Welders.

Key Specifications

QM75TX-HB is a 75 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	75 A
Datasheet	Available on this page (PDF)

Download QM75TX-HB Datasheet

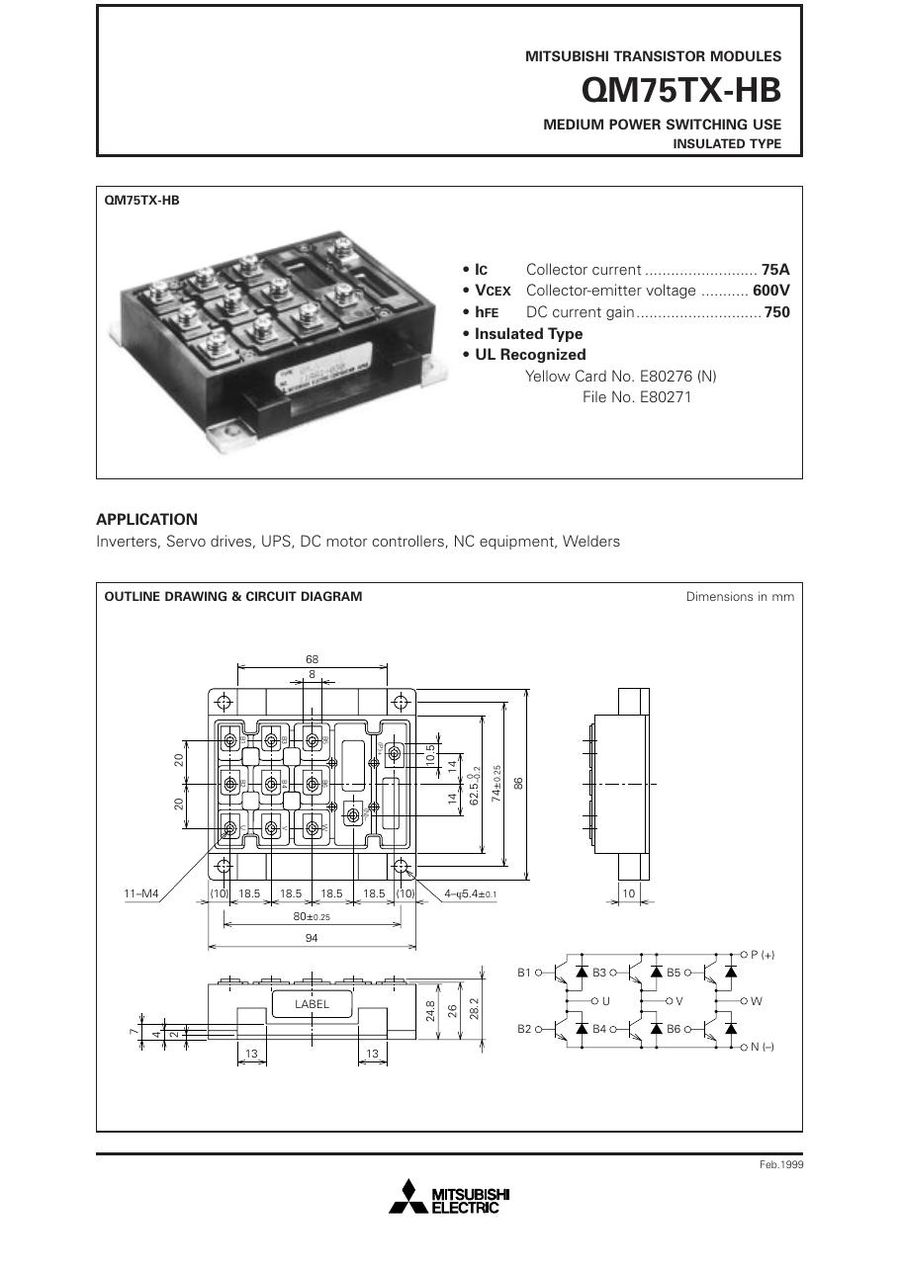

QM75TX-HB PDF Datasheet
