QM75HA-HB Mitsubishi - Bipolar Transistor Module

Category: Darlington / Bipolar Transistor Modules

Specifications: 600V, 75A

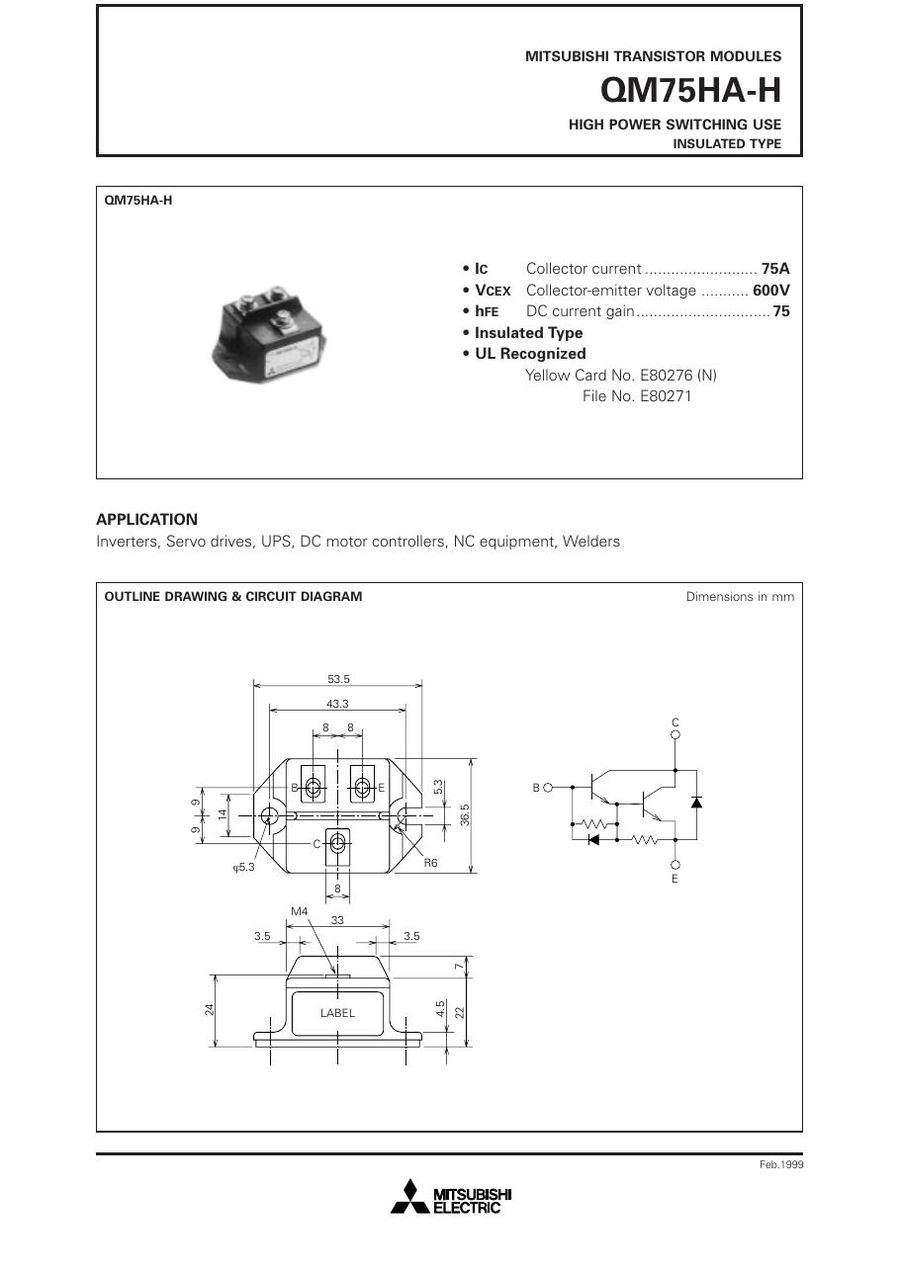

QM75HA-HB, Mitsubishi, Power Transistor Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

QM75HA-HB Description

The QM75HA-HB from Mitsubishi Electric is a Darlington transistor module with a 600 V / 75 A rating. You will mostly see it in older AC drives, servo amplifiers and UPS systems, where a like-for-like replacement keeps the machine running.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the QM75HA-HB and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

QM75HA-HB is a 75 A power transistor (bipolar Darlington) module.

Target Applications

Mitsubishi QM75HA-HB is used for Inverters, Servo Drives, DC Motor Controllers, NC Equipment and Welder.

Key Specifications

QM75HA-HB is a 75 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

ParameterValue
Product typePower transistor (bipolar Darlington) module
Collector current (IC)75 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for QM75HA-HB (reply within 24 hours)
