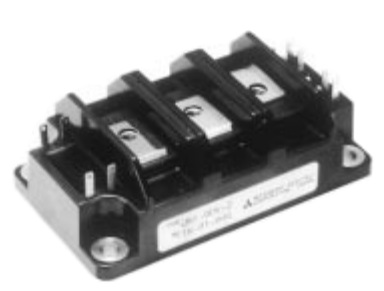

QM150DY-2HBK Mitsubishi - Power Transistor Module

QM150DY-2HBK Description

QM150DY-2HBK is a Darlington transistor module, dual, high power switching use from Mitsubishi Electric, rated 1000V, 150A. Typical applications: AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment and welders.

USComponent supplies QM150DY-2HBK and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi QM150DY-2HBK is used for AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment and welders.

Key Specifications

QM150DY-2HBK is a Darlington transistor module, dual, high power switching use from Mitsubishi Electric, rated 1000V, 150A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Mitsubishi Electric
Collector-emitter voltage VCEX	1000 V
Collector current IC (DC)	150 A
DC current gain hFE	750
Type	Insulated, dual (2 elements)
Datasheet	Available on this page (PDF)

Note: Collector current is 150 A (not 15 A).
