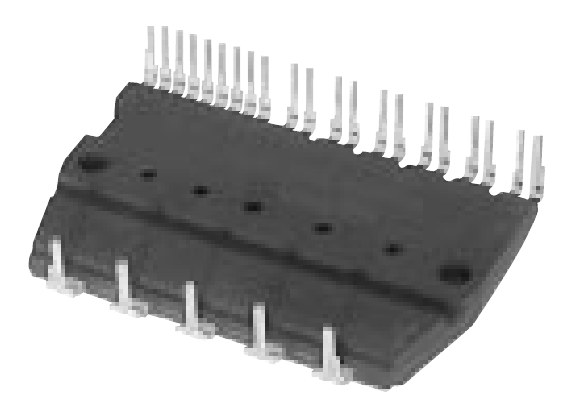

PS21352-G Mitsubishi - Intelligent Power Module

PS21352-G Description

PS21352-G is a dual-in-line intelligent power module (Mini DIP-IPM) from Powerex / Mitsubishi, rated 600V, 5A. Typical applications: Washing machines, refrigerators, air conditioners, small servo motors and small motor control.

USComponent supplies PS21352-G and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PS21352-G is used for Washing machines, refrigerators, air conditioners, small servo motors and small motor control.

Key Specifications

PS21352-G is a dual-in-line intelligent power module (Mini DIP-IPM) from Powerex / Mitsubishi, rated 600V, 5A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Powerex / Mitsubishi
Collector-emitter voltage VCES	600 V
Collector current ±IC (TC = 25 °C)	5 A
Peak collector current ICP	10 A
VCE(sat) typ. / max. (IC = 5 A)	1.80 V / 2.45 V
Supply voltage VCC (P-N)	450 V
Isolation voltage	1500 V (AC 1 min)
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PS21352-G (reply within 24 hours)
