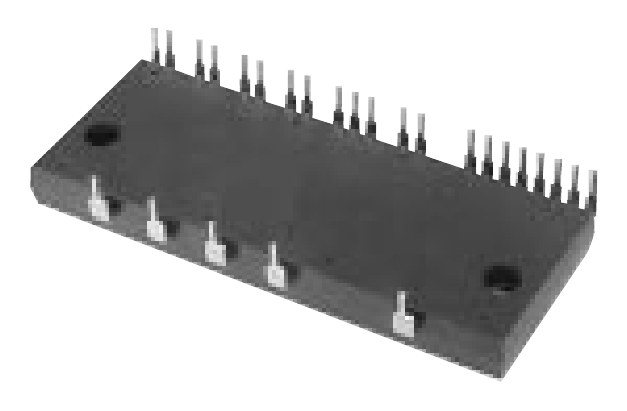

PS21244 Mitsubishi - Intelligent Power Module

PS21244 Description

PS21244 is a dual-in-line intelligent power module (DIP-IPM), 4th generation IGBT from Powerex / Mitsubishi, rated 600V, 15A. Typical applications: Refrigerators, air conditioners, small servo motors and small motor control.

USComponent supplies PS21244 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PS21244 is used for Refrigerators, air conditioners, small servo motors and small motor control.

Key Specifications

PS21244 is a dual-in-line intelligent power module (DIP-IPM), 4th generation IGBT from Powerex / Mitsubishi, rated 600V, 15A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Powerex / Mitsubishi
Collector-emitter voltage	600 V
Collector current	15 A
Optimized PWM frequency	5 kHz
Package	Dual-in-line transfer-mold
Datasheet	Available on this page (PDF)

Note: data taken from the Powerex / Mitsubishi datasheet of PS21244-E (E = lead-free version), which covers PS21244.

Technical document (PDF)  |  Request a quote for PS21244 (reply within 24 hours)
