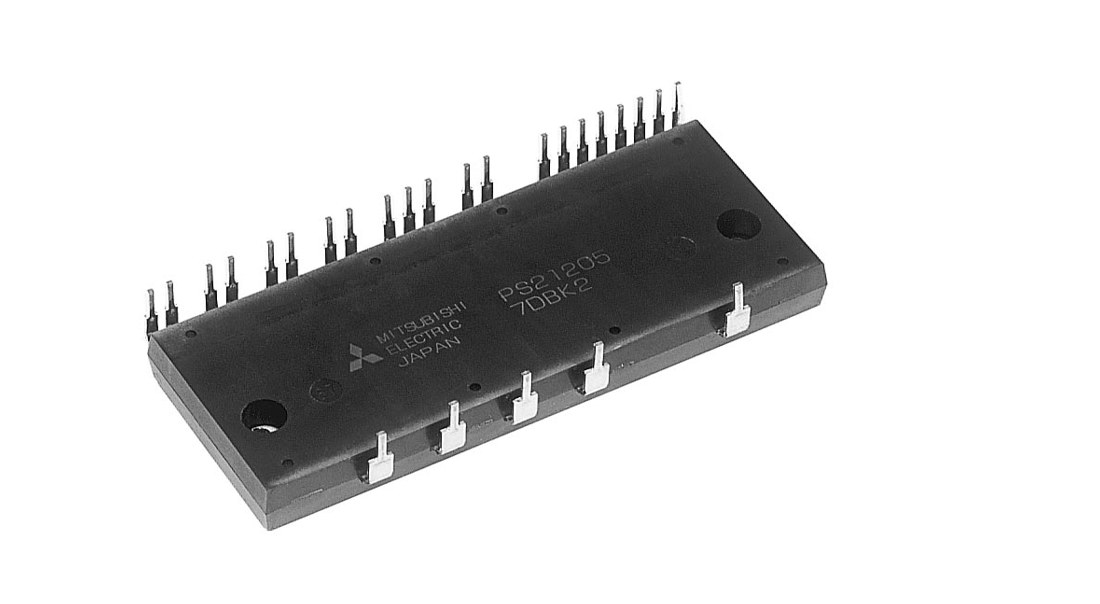

PS21205 Mitsubishi - Intelligent Power Module
PS21205 Description
PS21205 is a dual-in-line package intelligent power module (DIP-IPM), transfer-mold from Mitsubishi Electric, rated 600V, 20A.
USComponent supplies PS21205 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 600 V / 20 A low-loss 3rd generation IGBT inverter bridge for 3 phase DC-to-AC power conversion
- Integrated drive, protection and system control functions
- Upper-leg IGBTs: drive circuit, high voltage isolated high-speed level shifting, under-voltage protection
- Lower-leg IGBTs: drive circuit, under-voltage and short circuit protection
- Fault signaling output
- Bootstrap supply scheme can be applied
Target Applications
Mitsubishi PS21205 is used for AC100V~200V three-phase inverter drive for small power (1.5 kW) motor control.
Key Specifications
PS21205 is a dual-in-line package intelligent power module (DIP-IPM), transfer-mold from Mitsubishi Electric, rated 600V, 20A. Source: manufacturer datasheet.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Collector-emitter voltage VCES | 600 V |
| Each IGBT collector current ±IC (TC = 25 °C) | 20 A |
| ±ICP (pulse) | 40 A |
| Supply voltage VCC (P-N) | 450 V |
| Application motor rating | 1.5 kW (100% load 8.0 A rms, 150% load 12.0 A rms 1 min) |
| Isolation voltage | 1500 Vrms |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for PS21205 (reply within 24 hours)
