PM75B4LB060 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 75A

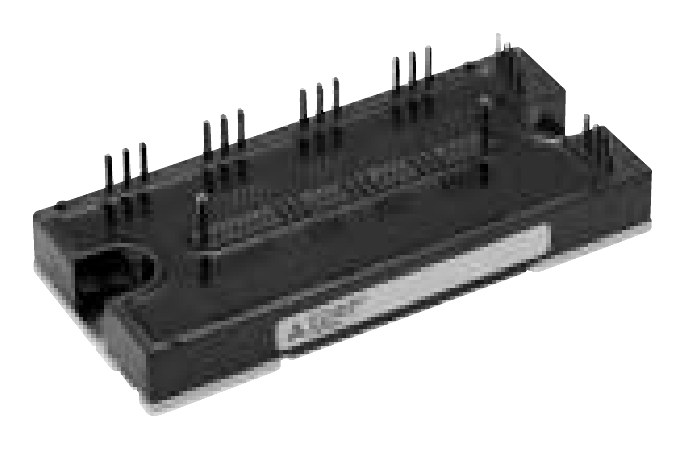

PM75B4LB060, Mitsubishi, Power Transistor Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

PM75B4LB060 Description

PM75B4LB060 is an intelligent power module (IPM), 2-phase (single phase full bridge) inverter from Mitsubishi Electric, rated 600V, 75A. Typical applications: Photovoltaic power conditioner.

USComponent supplies PM75B4LB060 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 5th generation IGBT (CSTBT) chip, typical Vce(sat) = 1.55 V @ Tj = 125 °C
  • Over-temperature protection by detecting Tj of the CSTBT chips
  • New small package: size reduced by 10%, thickness by 22% from S-DASH series
  • 2φ 75 A, 600 V current-sense IGBT type inverter
  • Monolithic gate drive & protection logic
  • UL recognized (E80276 / E80271)

Target Applications

Mitsubishi PM75B4LB060 is used for Photovoltaic power conditioner.

Key Specifications

PM75B4LB060 is an intelligent power module (IPM), 2-phase (single phase full bridge) inverter from Mitsubishi Electric, rated 600V, 75A. Source: manufacturer datasheet.

ParameterValue
ManufacturerMitsubishi Electric
Collector-emitter voltage VCES600 V
Collector current ±IC (TC = 25 °C)75 A
Peak collector current ±ICP150 A
Supply voltage VCC (P-N)≤ 400 V
Isolation voltage2500 Vrms, AC 1 min
PackageFlat-base type, insulated package
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PM75B4LB060 (reply within 24 hours)

Related Part Numbers

PM75B4LB060-201PM75CL1A060
600V, 75A		PM75CL1B060
600V, 75A		PM75RL1A060
600V, 75A
PM75RL1B060
600V, 75A		PM100CL1A060
600V, 100A		PM75B4LA060
600 V, 75 A		PM75BWA060
600V, 75A
PM75CBS060
600V, 75A		PM75CBS120
1200V, 75A		PM75CEA060
600V, 75A		PM75CEF060
600V, 75A
PM75CFE-060
600(V) / 75(A)		PM75CG1AP065
650V, 75A		PM75CG1APL065
650V, 75A		PM75CG1B065
650V, 75A
