PM50CTJ060-3 Mitsubishi - Intelligent Power Module

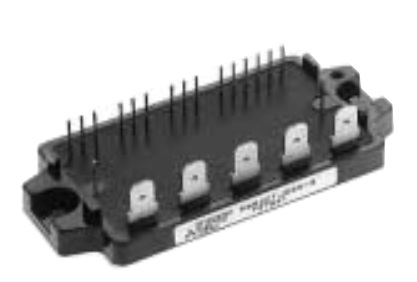

PM50CTJ060-3 Description

Mitsubishi Electric makes the PM50CTJ060-3, a 600 V, 50 A intelligent power module (IPM). Inside, it has six switches arranged as a three-phase bridge (6-in-1). An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PM50CTJ060-3 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi PM50CTJ060-3 is used for Air-conditionerGenerapurposinverterservdriveanothemotocontrols.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), six-pack (three-phase inverter)
Built-in protection	Short circuit, over current, over temperature, under voltage (monolithic gate drive and protection logic)
VCES	600 V
IC	±50 A (TC = 25 °C)
ICP	±100 A
Isolation voltage	2500 Vrms (60 Hz, AC 1 min)

PM50CTJ060-3 Video

Technical document (PDF)  |  Request a quote for PM50CTJ060-3 (reply within 24 hours)
