PM50CBS060Mitsubishi - Intelligent Power Module

PM50CBS060 Description

Mitsubishi Electric PM50CBS060 is an intelligent power module (IPM) rated at 600 V and 50 A. Typical applications for this type of device include compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM50CBS060.

Summary of Features

Target Applications

Mitsubishi PM50CBS060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM50CBS060 is a 600 V, 50 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

Download PM50CBS060 Datasheet

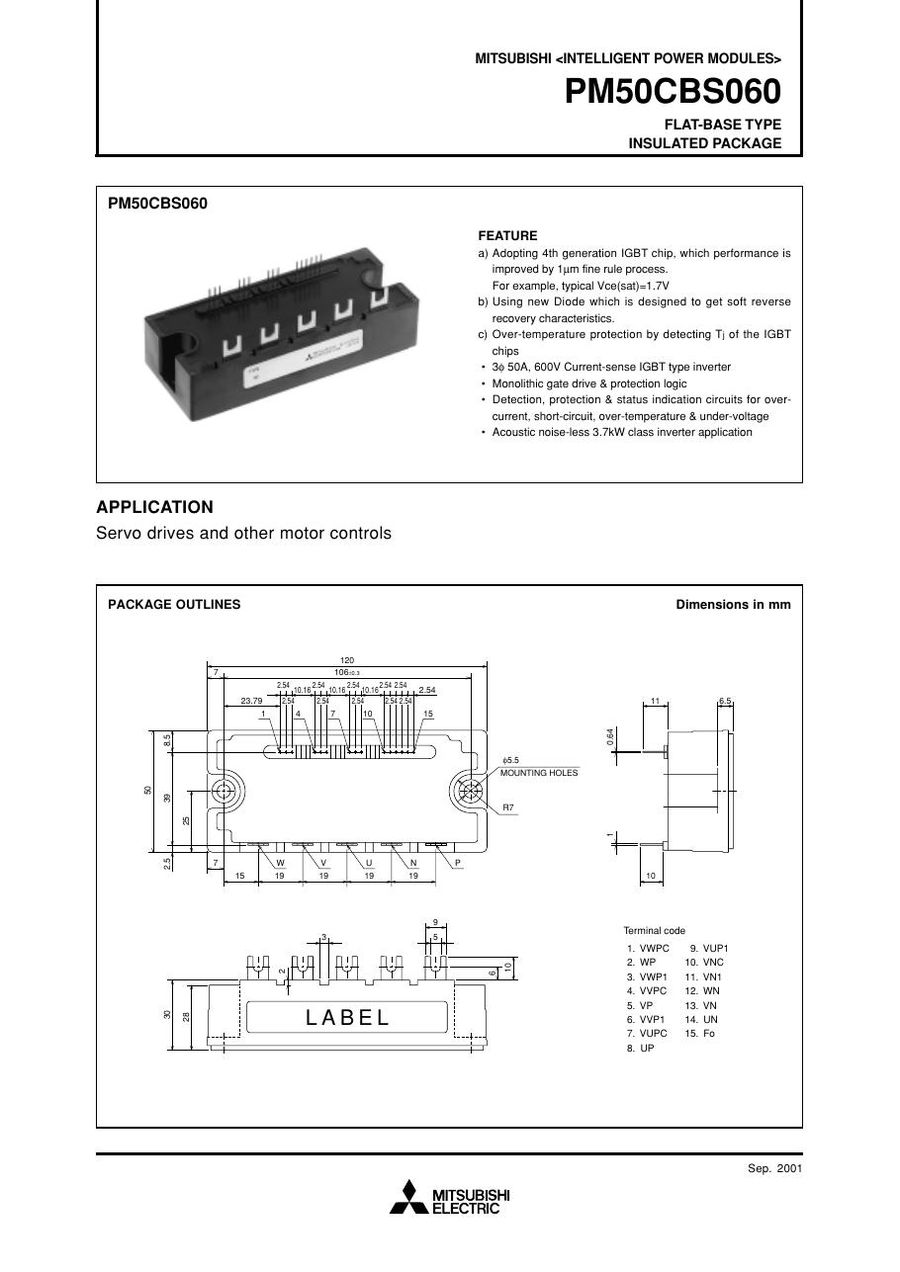

PM50CBS060 PDF Datasheet
