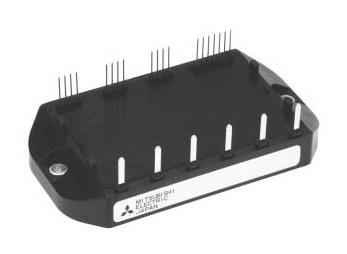

PM25RL1C120 Mitsubishi - Intelligent Power Module
PM25RL1C120 Description
PM25RL1C120 is a 1200 V / 25 A seven-pack (3-phase inverter + brake) intelligent power module (IPM) from Mitsubishi Electric (L1C package). Typical applications: general purpose inverters, servo drives and other motor controls.
USComponent supplies PM25RL1C120 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 5th generation Full-Gate CSTBT chip
- Over-temperature protection that detects the chip surface temperature
- Error output signal from each protection, upper and lower arm
- Monolithic gate drive and protection logic
- Detection, protection and status indication for short circuit, over-temperature and under-voltage
- Compatible L-series package
- UL Recognized
Target Applications
Mitsubishi PM25RL1C120 is used for General purpose inverters, servo drives and other motor controls.
Key Specifications
PM25RL1C120 is a 1200 V / 25 A seven-pack (3-phase inverter + brake) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | L1 series |
| Configuration | Seven-pack (3-phase inverter + brake) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 25 A |
| Package | L1C |
| Package size | 50 x 90 mm |
| Supply status (Mitsubishi) | Not Recommended for New Designs |
| Datasheet | Available on this page (PDF) |
Status: Mitsubishi Electric lists PM25RL1C120 as Not Recommended for New Designs. USComponent can still source PM25RL1C120 and help you find a suitable alternative.
Technical document (PDF) | Request a quote for PM25RL1C120 (reply within 24 hours)
