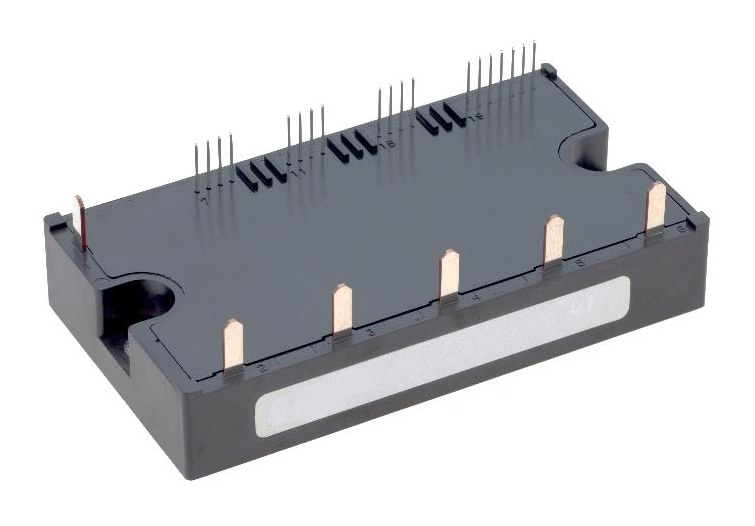

PM100CG1APL065 Mitsubishi - Intelligent Power Module
PM100CG1APL065 Description
PM100CG1APL065 is a 650 V / 100 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric (G1 A-Package package). Typical applications: general purpose inverter, servo drives and other motor controls.
USComponent supplies PM100CG1APL065 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Adopting Full-Gate CSTBT chip
- The over-temperature protection which detects the chip surface temperature of CSTBT is adopted
- Error output signal is available from each protection upper and lower arm of IPM
- Outputting an error signal corresponding to the abnormal state (error mode identification)
- UL Recognized under UL1557, File No. E323585
Target Applications
Mitsubishi PM100CG1APL065 is used for General purpose inverter, servo drives and other motor controls.
Key Specifications
PM100CG1APL065 is a 650 V / 100 A six-pack (3-phase inverter) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | G1 series |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 650 V |
| Collector current (IC) | 100 A |
| Isolation voltage (Viso) | 2,500 V RMS |
| Package | G1 A-Package |
| Package size | 50 x 90 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Note: the Mitsubishi datasheet covers PM100CG1AP065 / PM100CG1APL065.
Technical document (PDF) | Request a quote for PM100CG1APL065 (reply within 24 hours)
Related Part Numbers
| PM75CG1APL065 650V, 75A | PM50CG1APL120 1200V, 50A | PM35CG1APL120 1200V, 35A | PM25CG1APL120 1200V, 25A |
| PM100CG1B065 650V, 100A | PM100CG1AP065 650V, 100A | PM100CG1B120 1200V, 100A | PM100CFE060 600V, 100A |
| PM100CG1C120 1200V, 100A | PM100CEF060 600V, 100A | PM100CHS060 600V, 100A | PM100CEA060 600V, 100A |
| PM100CL1A060 600V, 100A | PM100CBS120 1200(V) / 100(A) | PM100CL1A120 1200(V) / 100(A) | PM100CBS060 100A/600V |
