M57962L Mitsubishi - Integrated Circuit

M57962L Description

Mitsubishi Electric M57962L is a power semiconductor module. Components of this type are used in motor drives, power conversion and industrial control equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the M57962L and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi M57962L is used for driving IGBT modules in inverters, AC servo systems, UPS, CVCF inverters and welding equipment.

Key Specifications

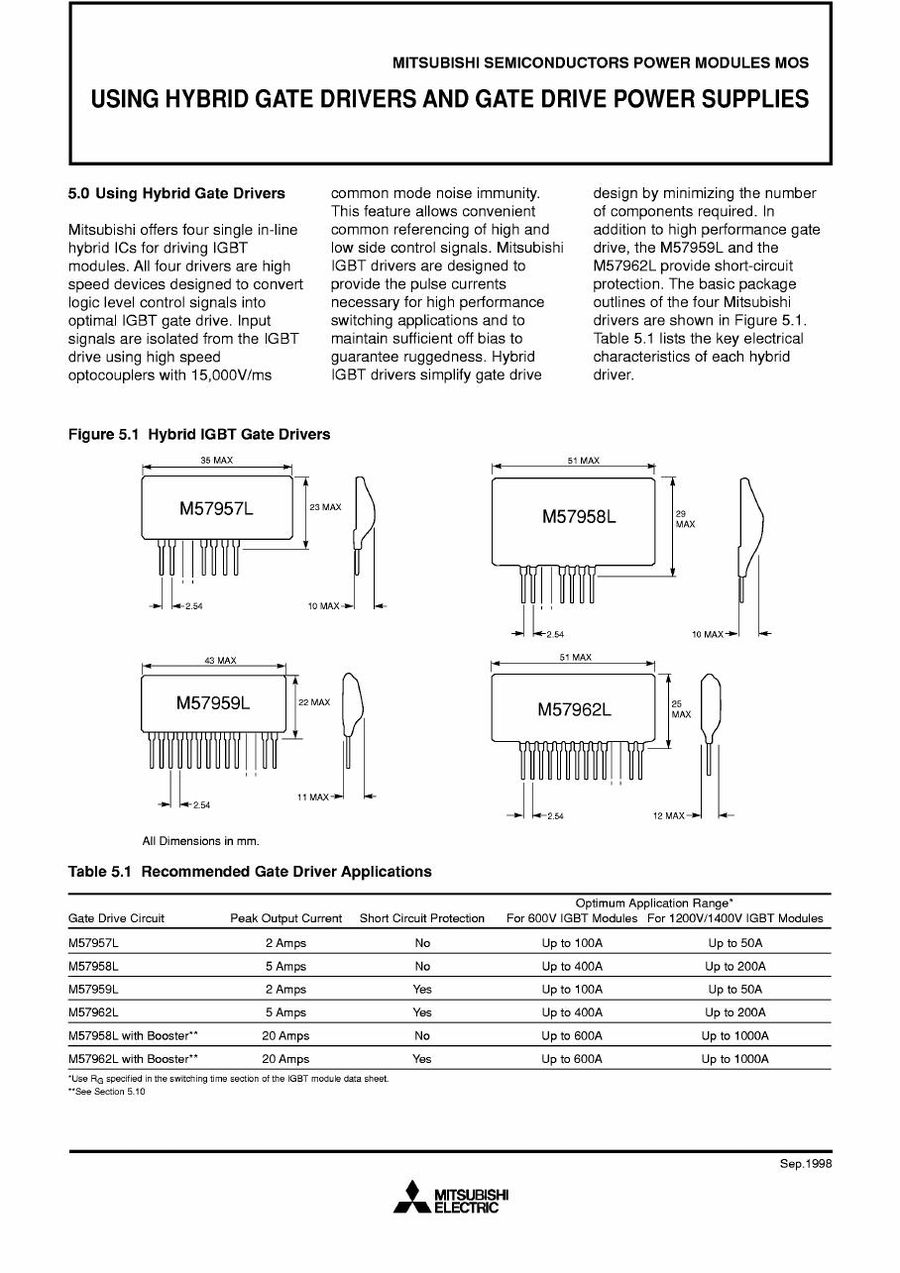

Mitsubishi M57962L is a hybrid IC gate driver for IGBT modules, with opto-coupler isolation and built-in short-circuit protection. Source: Mitsubishi M57962L datasheet.

Parameter	Value
Product type	Hybrid IC, gate driver for n-channel IGBT modules
Isolation	Built-in opto-coupler, 2,500 Vrms (1 min)
Common mode rejection (CMR)	30 kV/µs typ, 15 kV/µs min
Supply voltage (max)	VCC 18 V, VEE -15 V
Recommended supply	VCC 15 V, VEE -7 to -10 V
Peak output current	±5 A (2 µs pulse, 20 kHz)
Propagation delay	1.0 µs typ, 1.5 µs max
Input	TTL compatible
Protection	Short-circuit protection by desaturation detection, with fault output
Recommended modules	600 V up to 400 A; 1,200 V and 1,400 V up to 200 A
Operating temperature	-20 to +60 °C
Datasheet	Available on this page (PDF)
