CMH400DU-24NFH Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 400A

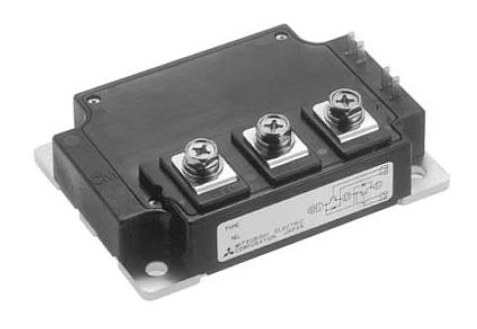

CMH400DU-24NFH Mitsubishi IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

CMH400DU-24NFH Description

CMH400DU-24NFH is a 1200 V / 400 A dual (half-bridge) hybrid SiC IGBT module (IGBT + SiC Schottky diode) from Mitsubishi Electric (Standard Type package). Typical applications: high frequency switching use(30kHz to 60kHz) Gradient magnetic power supply, Induction heating.

USComponent supplies CMH400DU-24NFH and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Silicon IGBT + Silicon Carbide Schottky Barrier Diode
  • Flat base Type
  • Copper base plate
  • RoHS Directive compliant
  • Recognized under UL1557, File E323585

Target Applications

Mitsubishi CMH400DU-24NFH is used for High frequency switching use(30kHz to 60kHz) Gradient magnetic power supply, Induction heating.

Key Specifications

CMH400DU-24NFH is a 1200 V / 400 A dual (half-bridge) hybrid SiC IGBT module (IGBT + SiC Schottky diode) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeHybrid SiC IGBT module (IGBT + SiC Schottky diode)
SeriesHybrid SiC
ConfigurationDual (half-bridge)
Repetitive peak reverse voltage (VRRM)1200 V
Forward current (IF)400 A
Isolation voltage (Viso)4,000 V RMS
PackageStandard Type
Package size80 x 110 mm
Supply status (Mitsubishi)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for CMH400DU-24NFH (reply within 24 hours)
