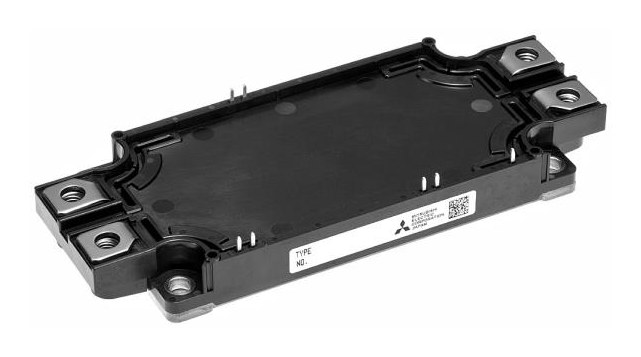

CMH300DX-24NFH Mitsubishi - IGBT Module

CMH300DX-24NFH Description

CMH300DX-24NFH is a 1200 V / 300 A dual (half-bridge) hybrid SiC IGBT module (IGBT + SiC Schottky diode) from Mitsubishi Electric (NX Type package). Typical applications: high frequency switching use(30kHz to 60kHz) Gradient magnetic power supply, Induction heating.

USComponent supplies CMH300DX-24NFH and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CMH300DX-24NFH is used for High frequency switching use(30kHz to 60kHz) Gradient magnetic power supply, Induction heating.

Key Specifications

CMH300DX-24NFH is a 1200 V / 300 A dual (half-bridge) hybrid SiC IGBT module (IGBT + SiC Schottky diode) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Hybrid SiC IGBT module (IGBT + SiC Schottky diode)
Series	Hybrid SiC
Configuration	Dual (half-bridge)
Repetitive peak reverse voltage (VRRM)	1200 V
Forward current (IF)	300 A
Isolation voltage (Viso)	4,000 V RMS
Package	NX Type
Package size	62 x 152 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)
