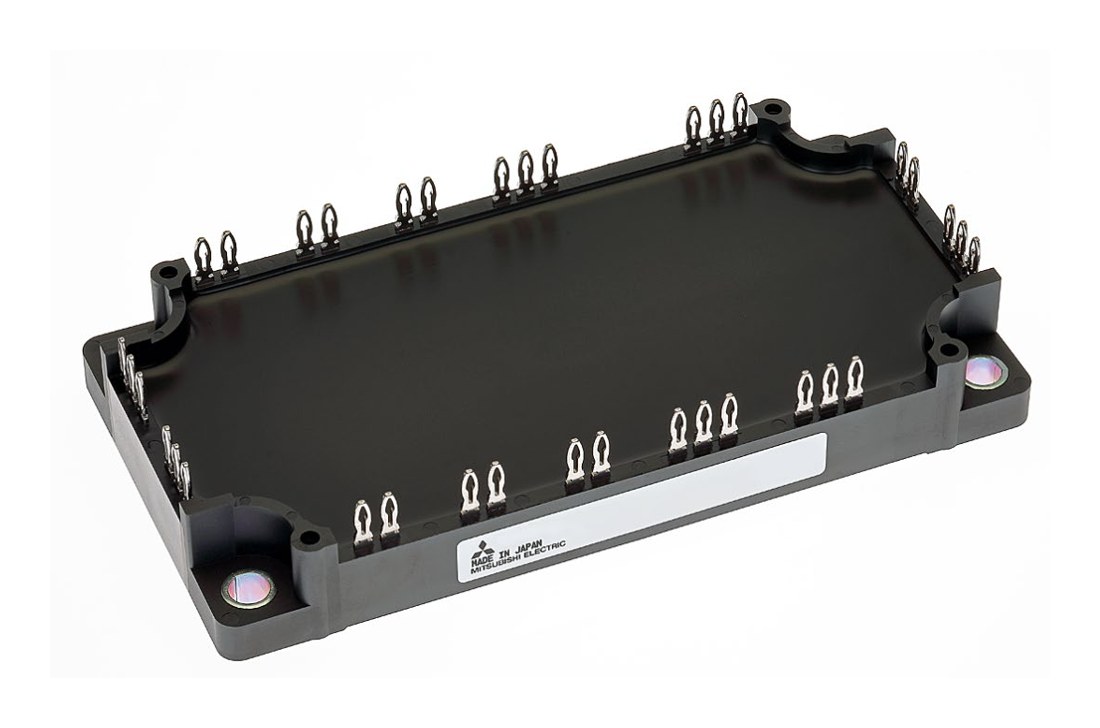

CM75MXUC-24T1 Mitsubishi - IGBT Module
CM75MXUC-24T1 Description
CM75MXUC-24T1 is a 1200 V / 75 A CIB (converter + inverter + brake) IGBT module from Mitsubishi Electric (CIB-M C-Package package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.
USComponent supplies CM75MXUC-24T1 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Flat base type
- Copper base plate (Nickel-plating)
- RoHS Directive compliant
- Tin-plating pin terminals
- Tin-plating pressfit terminals
- UL Recognized under UL1557, File No. E323585
Target Applications
Mitsubishi CM75MXUC-24T1 is used for AC Motor Control, Motion/Servo Control, Power supply.
Key Specifications
CM75MXUC-24T1 is a 1200 V / 75 A CIB (converter + inverter + brake) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | T1 series |
| Configuration | CIB (converter + inverter + brake) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 75 A |
| Isolation voltage (Viso) | 2,500 V RMS |
| Package | CIB-M C-Package |
| Package size | 62 x 122 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Note: the Mitsubishi datasheet covers CM75MXUC-24T1 / CM75MXUCP-24T1.
Technical document (PDF) | Request a quote for CM75MXUC-24T1 (reply within 24 hours)
