CM75MXA-34SA Mitsubishi - IGBT Module

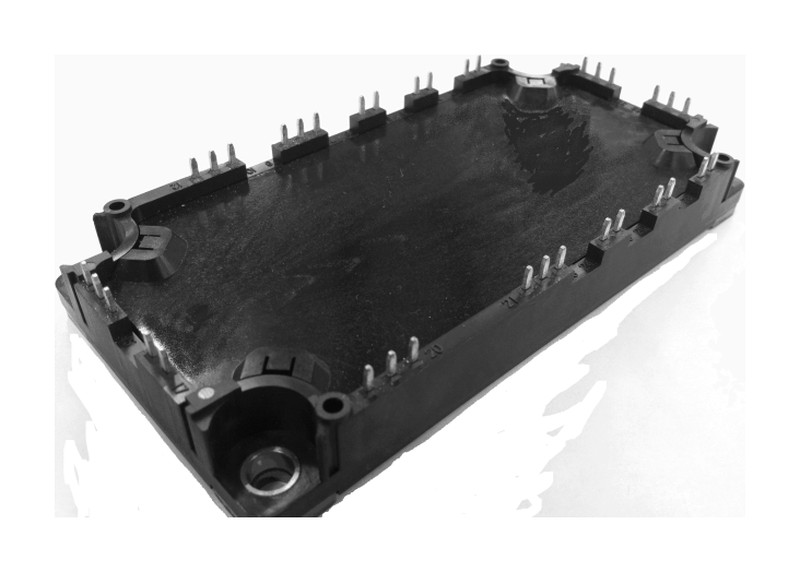

CM75MXA-34SA Description

CM75MXA-34SA is a 1,700 V / 75 A CIB (converter-inverter-brake) IGBT module from Mitsubishi Electric, SA series (6th generation IGBT). Datasheet ratings: 75 A DC at TC = 125 °C, VCE(sat) 2.00 V typ. at 75 A, 4,000 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM75MXA-34SA and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM75MXA-34SA is used for AC Motor Control and Motion/Servo Control.

Key Specifications

CM75MXA-34SA is a 1,700 V / 75 A CIB (converter-inverter-brake) IGBT module from Mitsubishi Electric, SA series (6th generation IGBT). Source: Mitsubishi Electric datasheet (July 2014).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	SA series (6th generation IGBT)
Configuration	CIB (converter + inverter + brake chopper)
Collector-emitter voltage (VCES, inverter part)	1,700 V
Collector current (IC, DC, TC = 125 °C, inverter part)	75 A
Repetitive peak collector current (ICRM, pulse, inverter part)	150 A
Total power dissipation (Ptot, TC = 25 °C, inverter part)	830 W
VCE(sat) (terminal), IC = 75 A, VGE = 15 V, Tj = 25 °C, inverter part	2.00 V typ. / 2.50 V max.
Gate-emitter threshold voltage VGE(th), inverter part	5.4 / 6.0 / 6.6 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	4,000 V RMS
Maximum junction temperature (Tjmax)	175 °C
Operating junction temperature	-40 to +150 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m (typ. 3.0)
Mass (typ.)	330 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	AC Motor Control, Motion/Servo Control, etc.
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM75MXA-34SA (reply within 24 hours)
