CM75DU-12FMitsubishi - IGBT Module

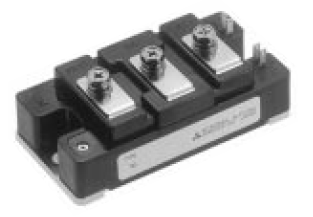

CM75DU-12F Description

Mitsubishi Electric CM75DU-12F is an IGBT module rated at 600 V and 75 A. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM75DU-12F.

Summary of Features

CM75DU-12F is a 600V 75A IGBT Module.

Target Applications

Mitsubishi CM75DU-12F is used for General purpose inverters & Servo controls, etc.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual - two IGBTs in half-bridge configuration with free-wheel diodes
Series	F-Series
VCES	600 V
IC	75 A (TC = 25 °C)
ICM (peak)	150 A
VCE(sat) typ.	1.6 V @ 75 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M5: 2.5 - 3.5 N·m
Mounting torque	M6: 3.5 - 4.5 N·m
Weight	310 g
Junction temperature	-40 to +150 °C
