CM421655 Mitsubishi - IGBT Module

CM421655 Description

The CM421655 is an IGBT module made by Mitsubishi Electric. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

We help engineers and repair technicians find parts like the CM421655, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi CM421655 is used for battery supplies, bridge circuits, AC and DC motor control, tap changers and lighting control.

Key Specifications

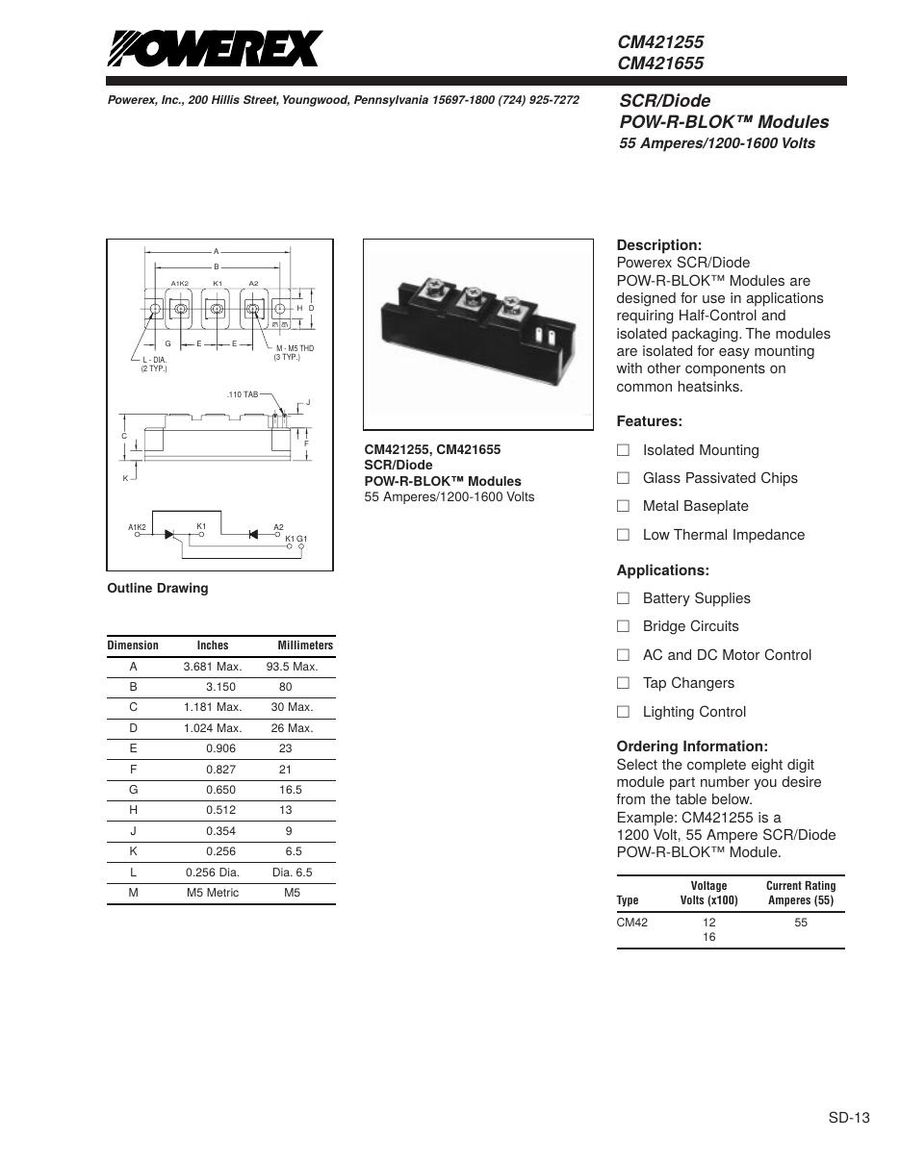

Powerex CM421655 is a 1,600 V, 55 A SCR/Diode POW-R-BLOK module for half-controlled circuits, with glass-passivated chips and isolated metal baseplate. Source: Powerex CM421655 datasheet.

Parameter	Value
Product type	SCR/Diode module (POW-R-BLOK), half-control, isolated base
Repetitive peak blocking voltage (VDRM / VRRM)	1,600 V
Average on-state current (IT(AV), TC = 81 °C)	55 A
RMS on-state current (IT(RMS))	86 A
Surge on-state current (ITSM, 60 Hz)	1,100 A
I²t (8.3 ms)	5,000 A²s
Peak on-state voltage (VTM, ITM = 165 A)	1.5 V max
Gate trigger current (IGT)	100 mA max
Isolation voltage	2,500 Vrms
Junction temperature	-40 to +125 °C
Terminals	M5 screw terminals
Weight (typ)	160 g
Datasheet	Available on this page (PDF)
